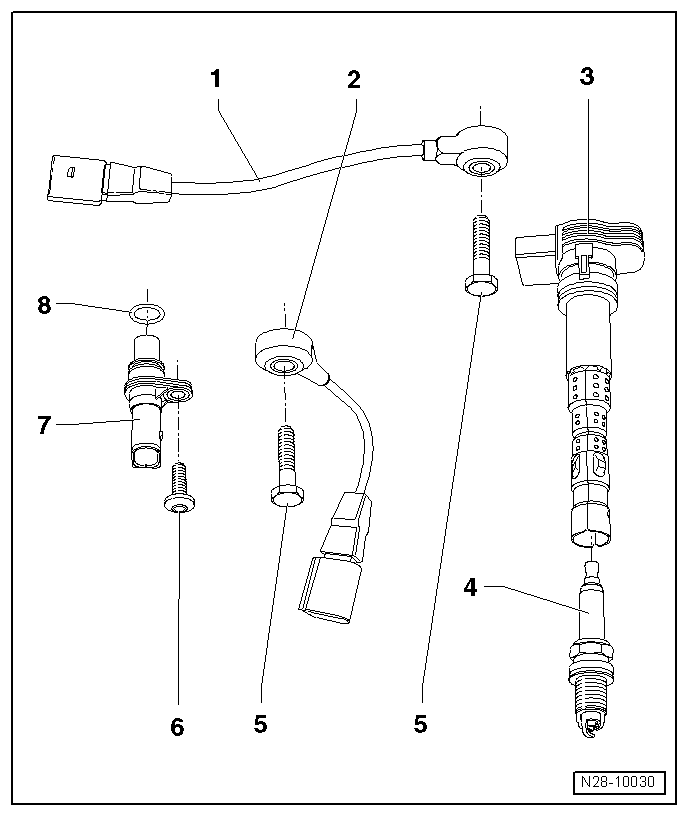

Ignition Assembly Overview
- Knock Sensor 1 -G61-
- Contacts gold plated
- Knock Sensor 2 -G66-
- Contacts gold plated
- Ignition Coil with Power Output Stage -(N70, N127, N291, N292)-
- Removing and installing, refer to IGNITION COILS WITH POWER OUTPUT STAGES
- To remove, use the ignition coil puller T40039
- Spark Plug
- 30 Nm
- Removing and installing, refer to SPARK PLUGS, REMOVING AND INSTALLING
- Bolt
- 20 Nm
- Tightening specifications affect function of Knock Sensor (KS)
- Bolt
- 10 Nm
- Camshaft Position Sensor -G40-
- Contacts gold plated
- O-ring
- If damaged, replace O-ring
