Bevel Box: Notes

Special tools and workshop equipment required

Oil Collecting and Extracting Device V.A.G 1782
Socket and Extended Bit T10107
Bracket 2024 A /1

Removing

-- Remove the noise insulation. Refer to Removal and Installation .

Fig 1: Center Noise Insulation Bolts

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Depending on the version, different noise insulation may be installed.

-- Remove the front section of the right wheel housing liner. Refer to Removal and Installation .

Fig 2: Identifying Fasteners

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Depending on the version, different wheel housing liner may be installed.

-- Remove the holder for the exhaust system from the aggregate holder -arrows-.

Fig 3: Bracket For Exhaust System

Courtesy of AUDI OF AMERICA, LLC

-- Separate the exhaust system at the clamping sleeve -arrows-.

Fig 4: Disconnecting Exhaust System At Double Clamp

Courtesy of AUDI OF AMERICA, LLC

-- Tie up the exhaust pipe.

NOTE:

To prevent damage, the decoupling element on the front exhaust pipe must never be angled more than 10°.

-- If installed, remove left front level control system sensor -G78- -arrows-.

Fig 5: Installing Front Level Control System Sensor

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1- on the oil level thermal sensor -G266-.

Fig 6: Disconnecting Connector From Oil Level Thermal Sensor G266

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2- and -3-.

Fig 7: Identifying Pendulum Support & Bolts

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore bolt -1-.

-- Mark the position of driveshaft with flexible disc to bevel box flange.

Fig 8: Driveshaft Flexible Disc

Courtesy of AUDI OF AMERICA, LLC

-- Remove the driveshaft and flexible disc from the bevel box flange shaft -arrows-.

NOTE:

In order to loosen the bolts, hold a lever against the driveshaft flange/final drive.

-- Slide front driveshaft tube as far back as possible.

CAUTION:

Sealing ring -arrow- in driveshaft flange must not be damaged when removing transmission. If seal is damaged, driveshaft must be replaced.
When loosening pedal support/subframe bolts, engine/transmission assembly moves forward slightly.

Fig 9: Identifying Sealing Ring In Driveshaft Flange

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2- and -3-.

Fig 10: Identifying Pendulum Support & Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Push the aggregate forward slightly and remove the driveshaft from the bevel box.

-- Lift up driveshaft and secure with wire.

Vehicles with 6-Cylinder 3.2L Engine:

Fig 11: Identifying Right Driveshaft Heat Shield And Bevel Box

Courtesy of AUDI OF AMERICA, LLC

-- Remove the right drive axle heat shield from bevel box -arrows-.

-- Remove the bolts on the bevel box -1- and engine -2-.

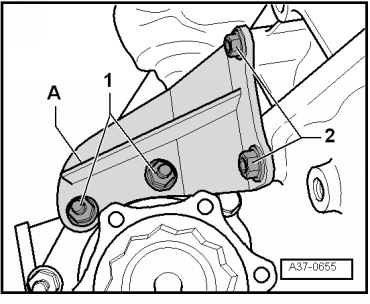

Fig 12: Bevel Box Bracket & Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bevel box bracket -A-.

4-Cylinder 2.0L TFSI Vehicles:

-- Remove the right drive axle heat shield from bevel box -arrows-.

Fig 13: Drive Axle Heat Shield

Courtesy of AUDI OF AMERICA, LLC

-- Remove the catalytic converter support by removing the bolts -1- and -2- if applicable.

Fig 14: Front Exhaust Pipe With Catalytic Converter Support Bolts And Font Exhaust Nuts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts on the bevel box -arrows 1- and engine -arrows 2-.

Fig 15: Identifying Oil Level Thermal Sensor Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bevel box bracket.

All Vehicles:

-- Remove the right front wheel.

-- Remove the right drive axle from the flange shaft on the bevel box.

-- Remove the bolt -arrow- for the right ball joint. Refer to Removal and Installation .

Fig 16: Ball Joint Lower Nuts

Courtesy of AUDI OF AMERICA, LLC

-- If equipped, remove the left front level control system sensor nuts.

-- Remove the ball joint from the control arm.

NOTE:

The installation position on the left front wheel suspension is shown in the illustration.

-- Move the right suspension strut to the outside and support it with the 2024 A /1 as illustrated.

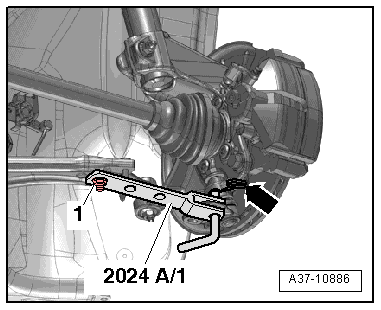

Fig 17: Supporting Right Suspension Strut With Tool 2024 A/1

Courtesy of AUDI OF AMERICA, LLC

WARNING:

There is the risk of an accident due to loose support parts.

Secure the securing pin and control arm with the plug connector -arrow- and nut -1-.

NOTE:

The installation position on the left front wheel suspension is shown in the illustration.

-- Lift up right drive axle and secure with wire.

-- Tighten the subframe crossmember before removing. Refer to Removal and Installation

-- Place the V.A.G 1782 under the transmission.

-- Remove right flange shaft bolt with T10107 by installing 2 bolts in flange and counter holding flange shaft with assembly lever.

Fig 18: Identifying Right Flange Shaft Countersunk Bolt, Socket And Key T10107

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bevel box bolts -arrows- on the transmission.

Fig 19: Identifying Special Tools And Workshop Equipment Required Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove bevel box from transmission together with right flange shaft.

Installing

Install in reverse order, paying attention to the following:

Tightening Specifications

Refer to FLANGE SHAFTS, SHAFT SEALS OVERVIEW .
Bevel box bracket for vehicles with four-cylinder, 2.0L TFSI - Tightening specification and sequence" FLANGE SHAFTS, SHAFT SEALS OVERVIEW => Bevel Box Bracket for Vehicles with 4-Cylinder, 2.0L TFSI - Tightening Specification and Sequence .
Bevel box bracket for vehicles with six-cylinder, 3.2L engine FLANGE SHAFTS, SHAFT SEALS OVERVIEW => Bevel Box Bracket -A- for Vehicles with 6-Cylinder 3.2L Engine - Tightening Specification and Sequence .
Refer to IDENTIFYING RIGHT DRIVESHAFT HEAT SHIELD AND BEVEL BOX .

NOTE:

When installing, bring all cable ties back to same positions.

-- Place bevel box together with flange shaft on transmission and rotate flange shaft.

NOTE:

Make sure the sealing ring on the transmission is not damaged.

-- Attach bevel box to transmission with four new bolts.

-- Attach the bracket to the engine and the bevel box.

-- Install the subframe. Refer to Removal and Installation .

NOTE:

Sealing ring -arrow- in driveshaft flanges must not be damaged when removing and installing. If seal is damaged, driveshaft must be replaced.

Fig 20: Identifying Sealing Ring In Driveshaft Flange

Courtesy of AUDI OF AMERICA, LLC

Slip driveshaft horizontally onto respective guide pin.

During removal, pay attention to the markings on the driveshaft and flange. These must be aligned with each other -arrows-.

Fig 21: Aligning Markings On Driveshaft At Flange Of Haldex Clutch

Courtesy of AUDI OF AMERICA, LLC

-- Secure the driveshaft with flexible disc on the bevel box flange -arrows-. Refer to FINAL DRIVE, DIFFERENTIAL .

Fig 22: Identifying Bevel Gear Transfer Case Flange Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Install the right flange shaft. Refer to RIGHT FLANGE SHAFT .

-- Install pendulum support. Refer to SUBFRAME MOUNT OVERVIEW .

Fig 23: Identifying Pendulum Support & Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Install the right drive axle. Refer to Removal and Installation .

-- Install the exhaust system free of tension. Refer to [For engine(s) CBRA] Description and Operation or to [For engine(s) CCTA] Description and Operation .

-- Refer to OIL LEVEL IN BEVEL BOX, CHECKING AND TOPPING OFF .
