Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

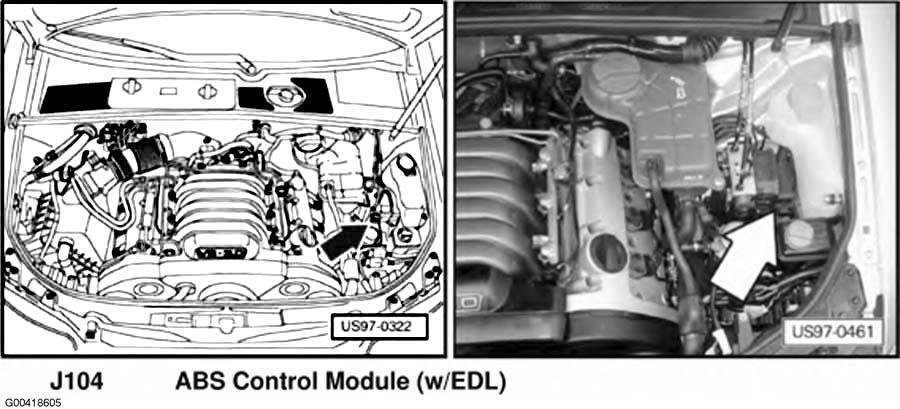

| ABS Control Module (W/EDL) | At left side of engine compartment. See Figure. |

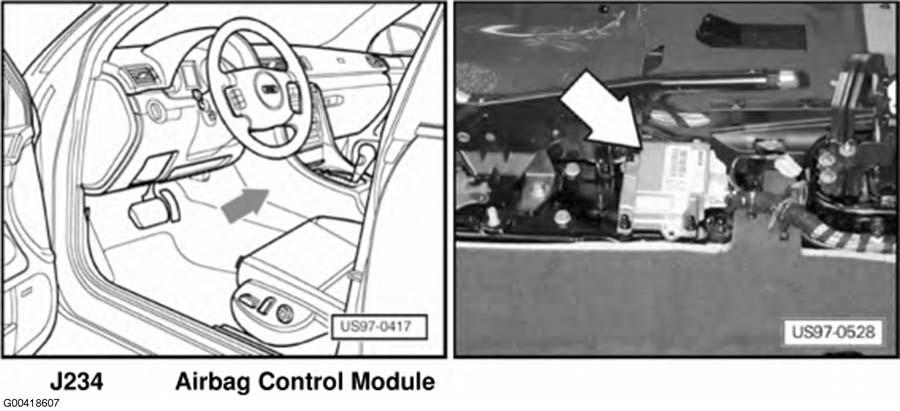

| Air Bag Control Module | Below center console. See Figure. |

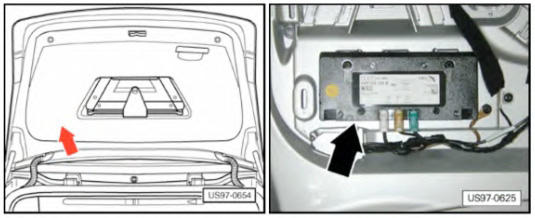

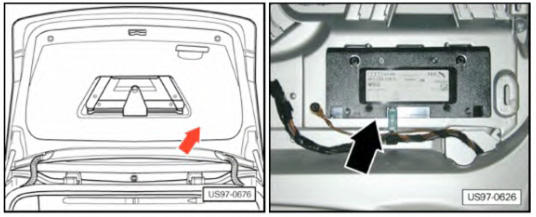

| Antenna Module (Left) | Under left side of luggage compartment lid. See Figure. |
| Antenna Module (Right) | Under right side of luggage compartment lid. See Figure. |

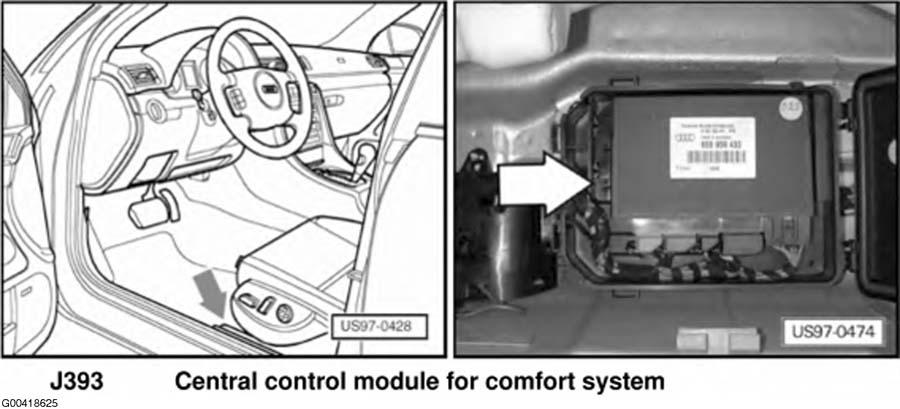

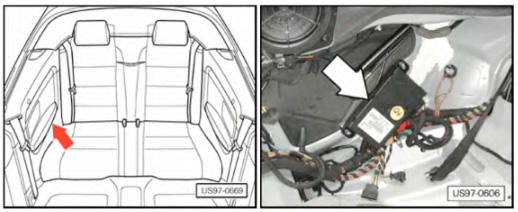

| Central Control Module (Comfort System) | Below driver's seat. See Figure. |
| Convertible Top Control Module | Behind right quarterpanel. See Figure. |

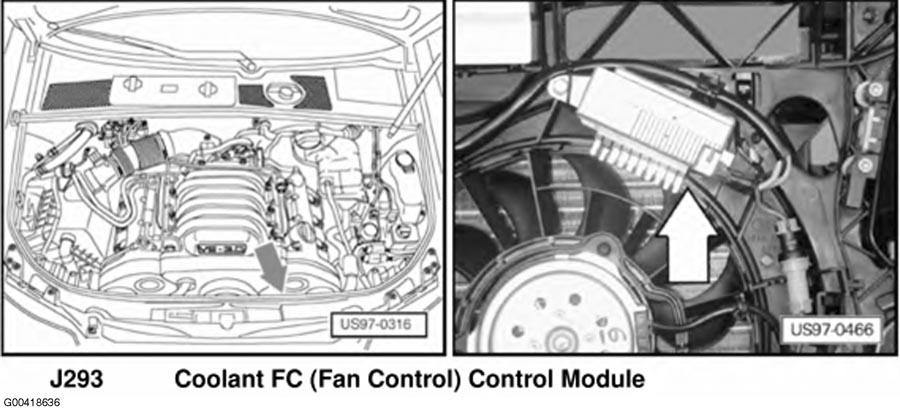

| Coolant FC (Fan Control) Control Module | Front of engine compartment. See Figure. |

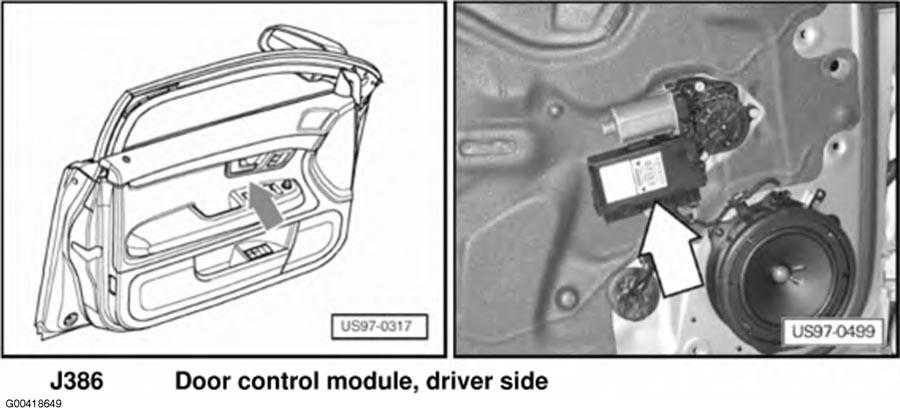

| Door Control Module (Driver Side) | Integrated in driver's door window regulator motor. See Figure. |

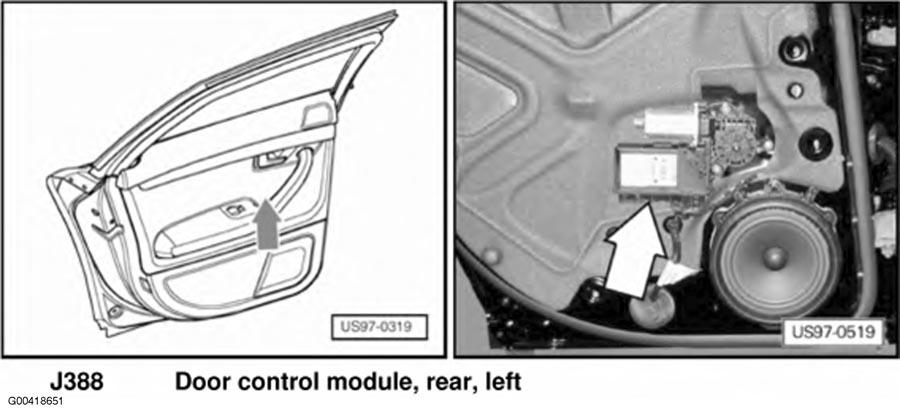

| Door Control Module (Left Rear) | Integrated in left rear door window regulator motor. See Figure. |

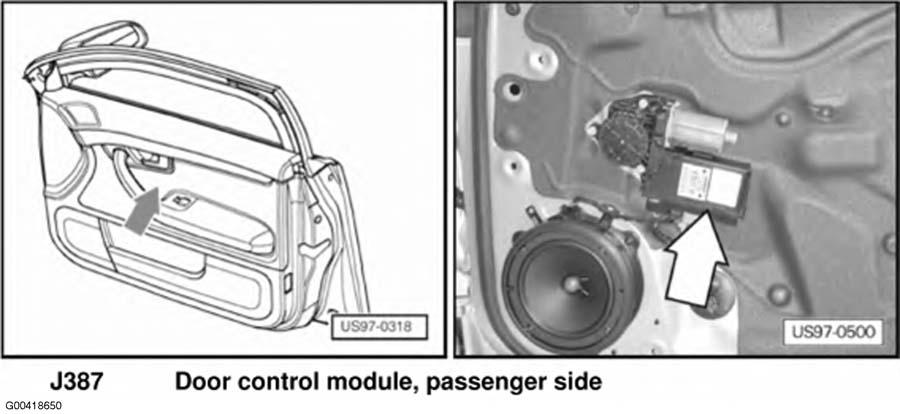

| Door Control Module (Passenger Side ) | Integrated in right front door window regulator motor. See Figure. |

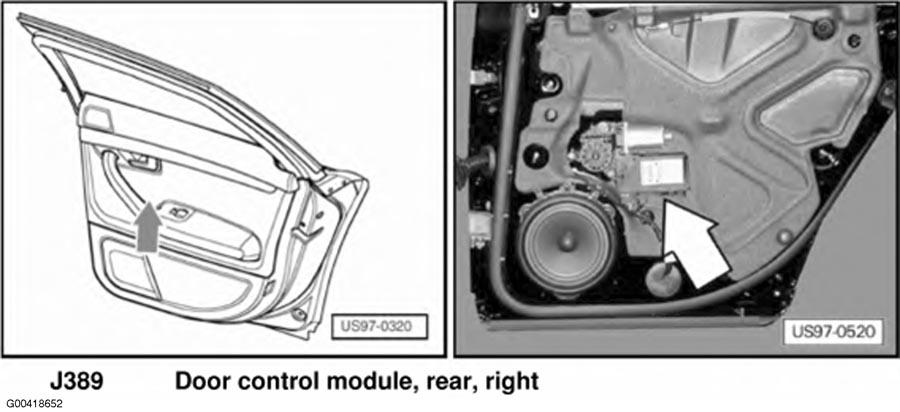

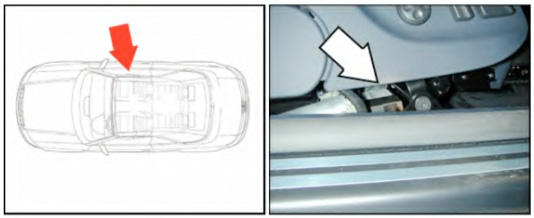

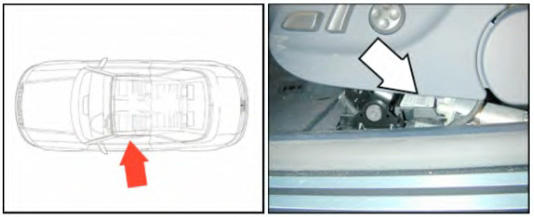

| Door Control Module (Right Rear) | Integrated in right rear door window regulator motor. See Figure. |
| Entry Assistance Control Module (Left) | Under driver's seat. See Figure. |
| Entry Assistance Control Module (Right) | Under front passenger's seat. See Figure. |

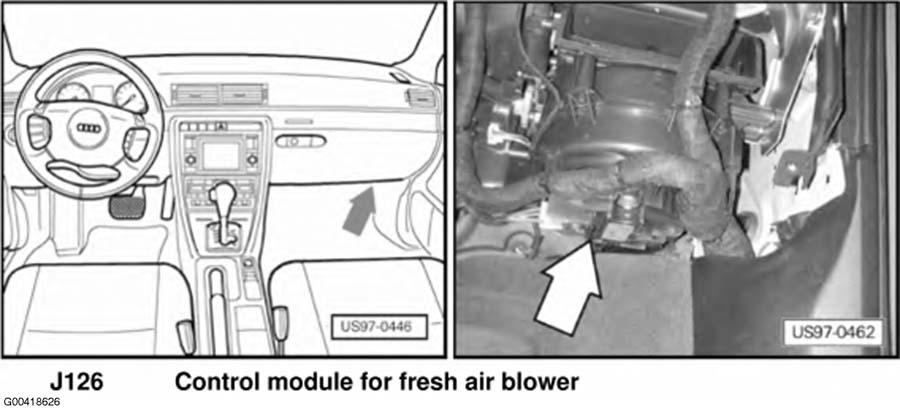

| Fresh Air Blower Control Module | Below right side of dash. See Figure. |

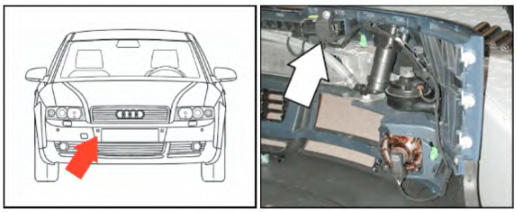

| Garage Door Opener Control Module | Behind right side of front bumper. See Figure. |

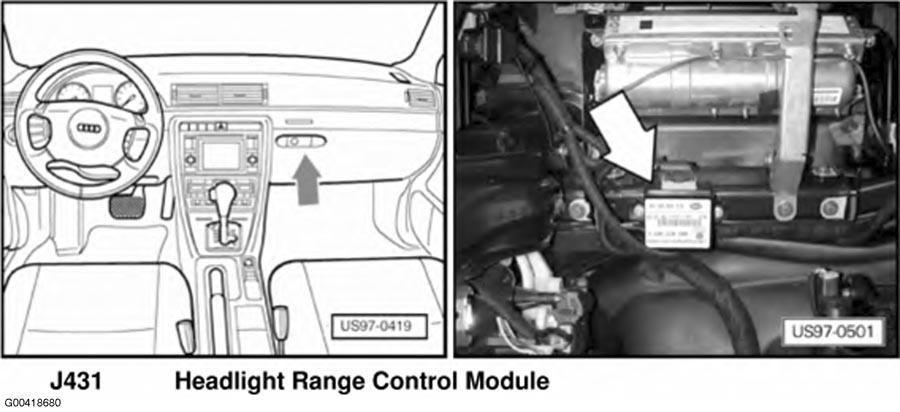

| Headlight Range Control Module | Behind right side of dash. See Figure. |

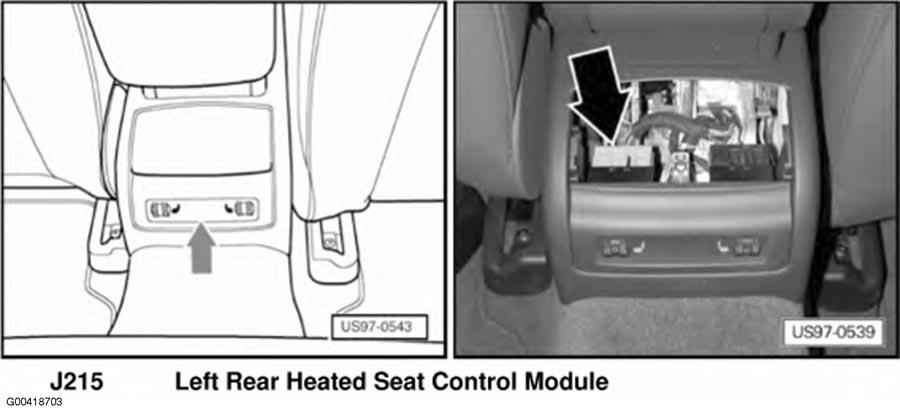

| Heated Seat Control Module (Left Rear) | Rear of center console. See Figure. |

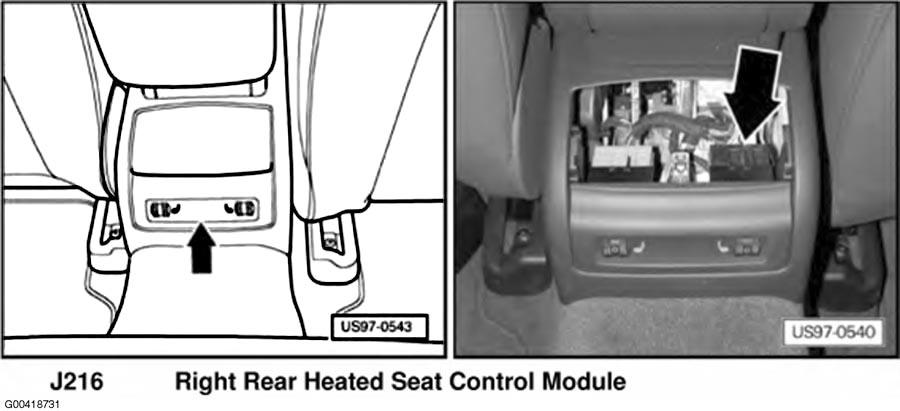

| Heated Seat Control Module (Right Rear) | Rear of center console. See Figure. |

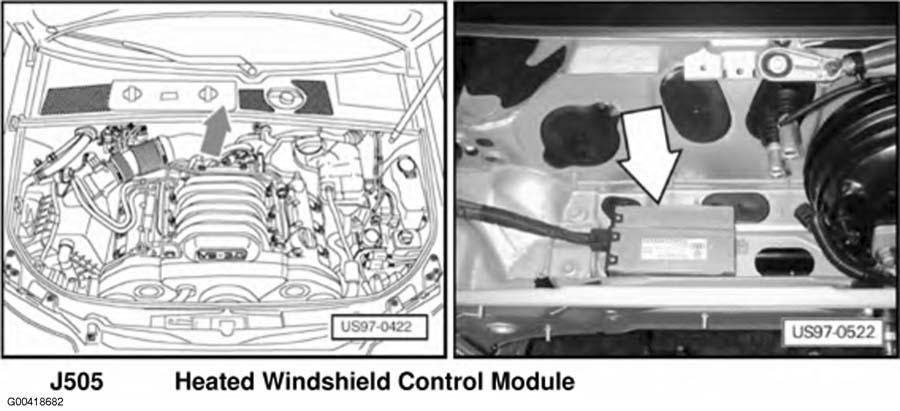

| Heated Windshield Control Module | Rear center of engine compartment. See Figure. |

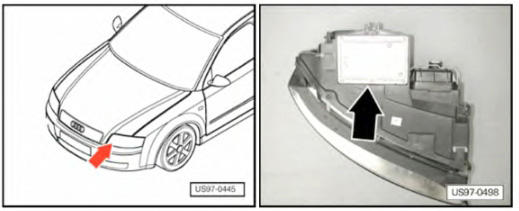

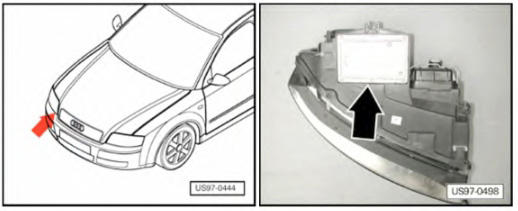

| High-Intensity Gas Discharge Lamp Control Module (Left) | At left headlight assembly. See Figure. |
| High-Intensity Gas Discharge Lamp Control Module (Right) | At right headlight assembly. See Figure. |

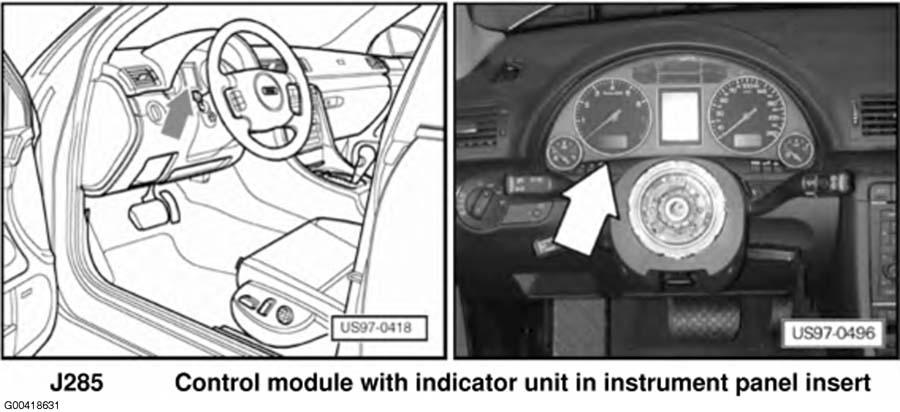

| Instrument Cluster Control Module | Behind instrument cluster. See Figure. |

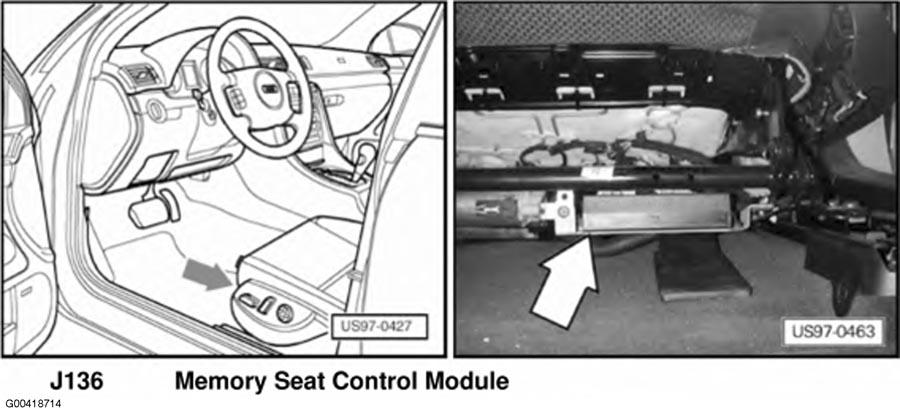

| Memory Seat Control Module | Under driver's seat. See Figure. |

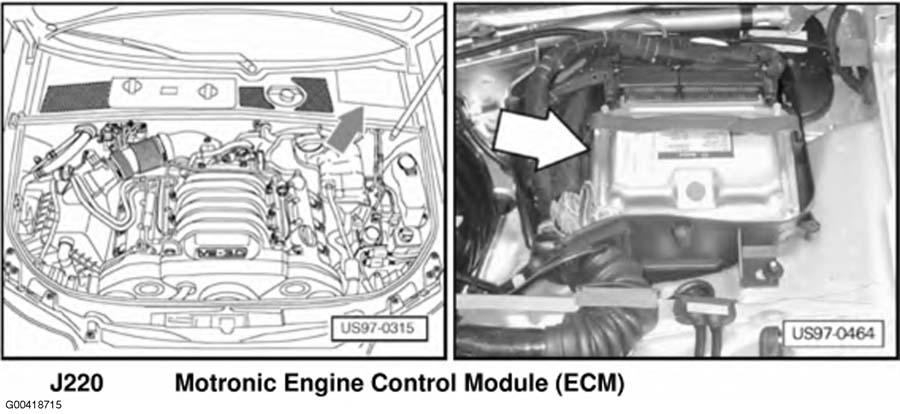

| Motronic Engine Control Module (ECM) | Left rear of engine compartment, in plenum chamber. See Figure. |

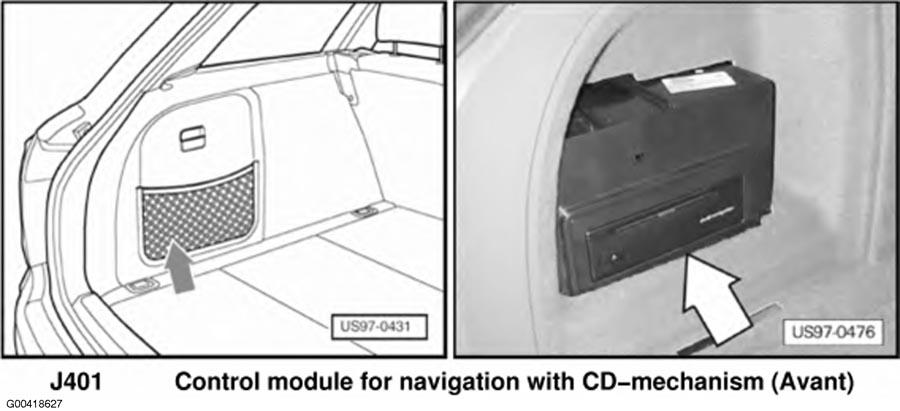

| Navigation Control Module W/CD (Avant) | Left rear of cargo area. See Figure. |
| Navigation Control Module W/CD (Convertible) | Left side of luggage compartment. See Figure. |

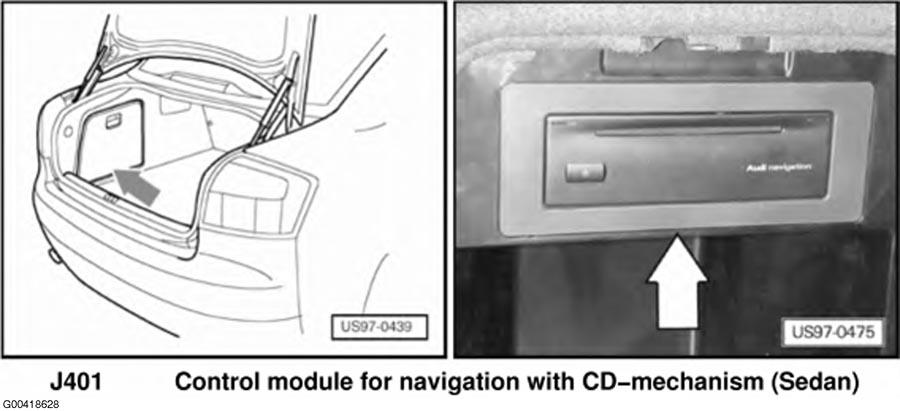

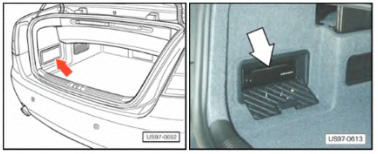

| Navigation Control Module W/CD (Sedan) | Left side of trunk. See Figure. |

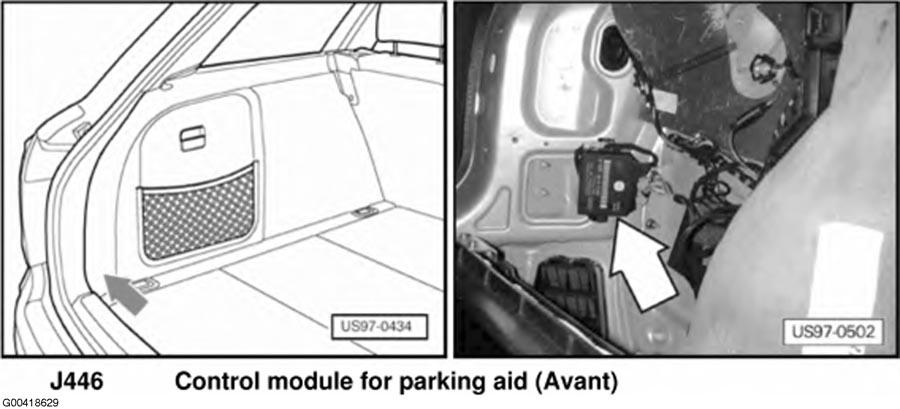

| Parking Aid Control Module (Avant) | Left side of cargo area. See Figure. |

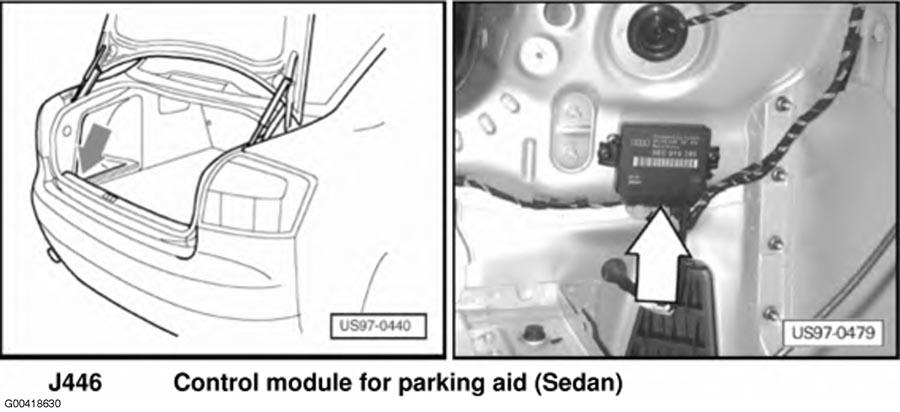

| Parking Aid Control Module (Sedan) | Left side of trunk. See Figure. |

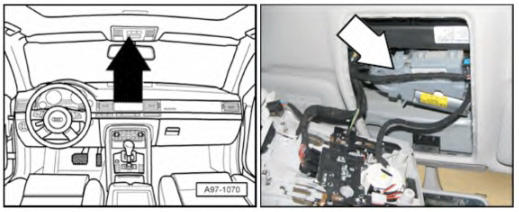

| Power Sunroof Control Module | Under roof console. See Figure. |

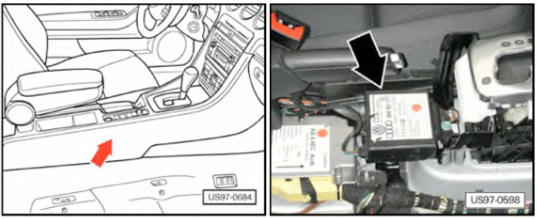

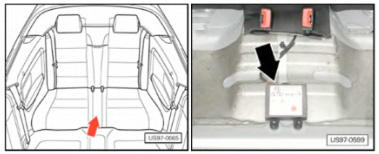

| Radar Interior Monitoring Control Module 1 | Under center console. See Figure. |
| Radar Interior Monitoring Control Module 2 | Under center of rear seat. See Figure. |

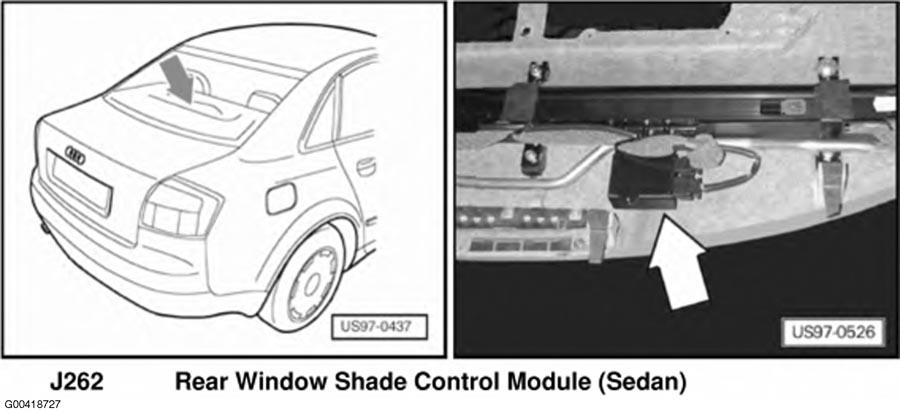

| Rear Window Shade Control Module | Under package shelf. See Figure. |

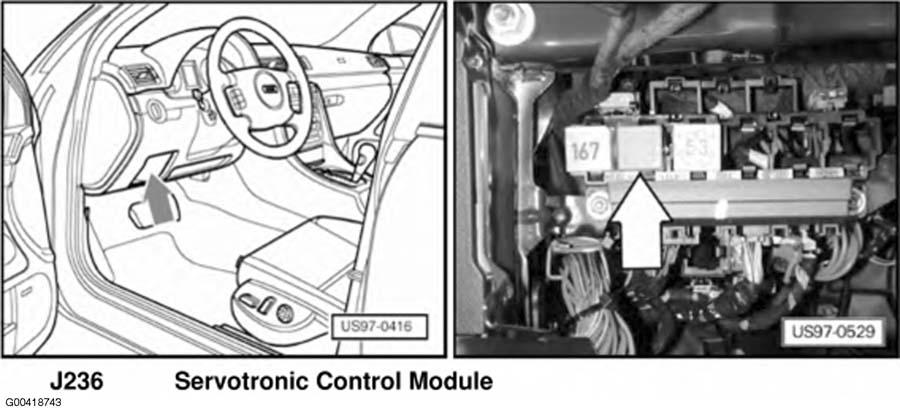

| Servotronic Control Module | At left side of dash. See Figure. |

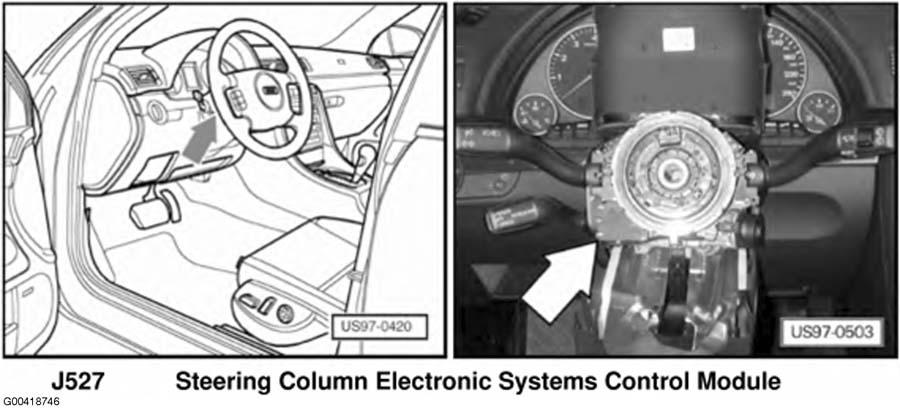

| Steering Column Electronic Systems Control Module | On steering column, behind steering wheel. See Figure. |

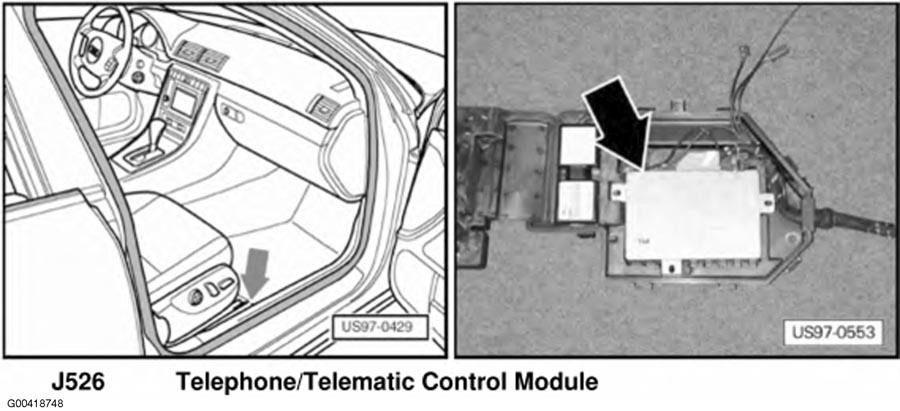

| Telephone/Telematic Control Module | Under passenger's seat. See Figure. |

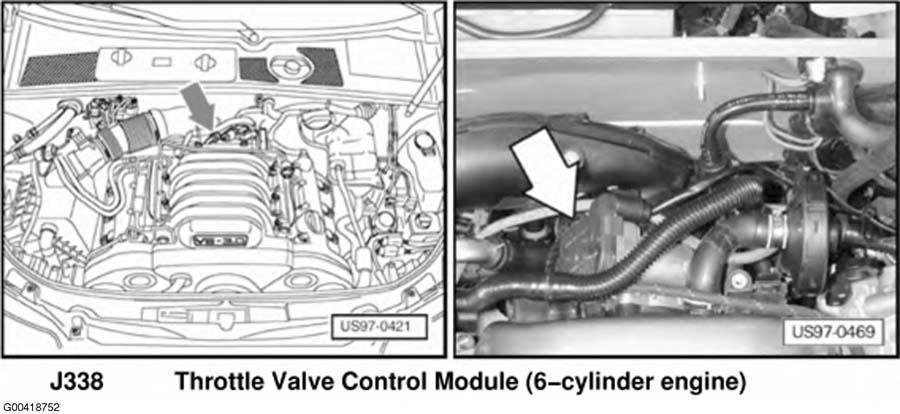

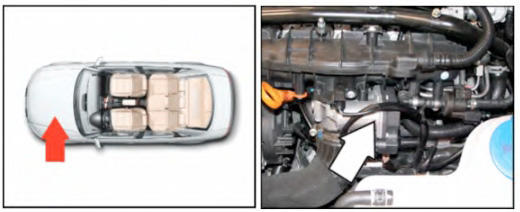

| Throttle Valve Control Module (2.0L) | On intake manifold. See Figure. |
| Throttle Valve Control Module (3.2L) | Behind intake manifold, on throttle valve housing. See Figure. |

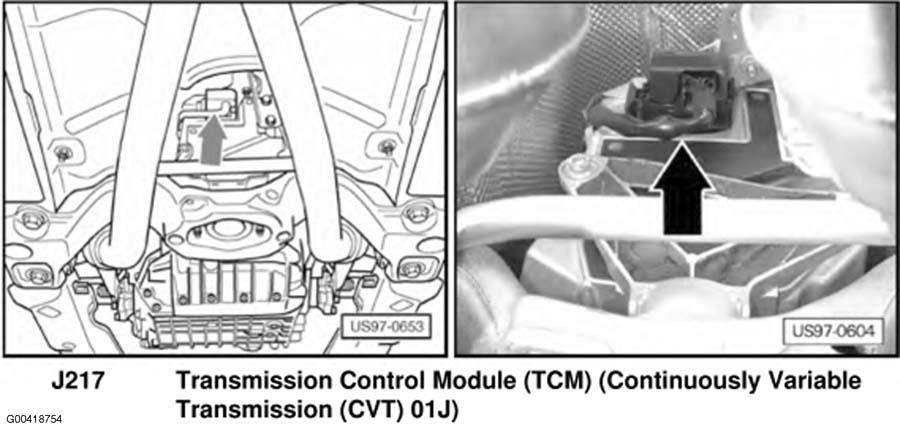

| Transmission Control Module (TCM) (CVT) | At rear of transmission. See Figure. |

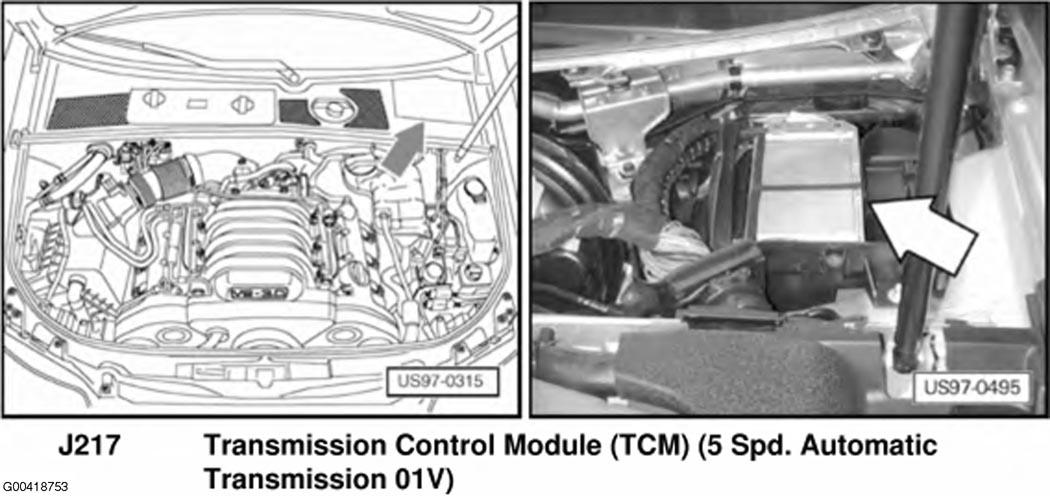

| Transmission Control Module (TCM) (5 Speed A/T) | Left rear of engine compartment. See Figure. |

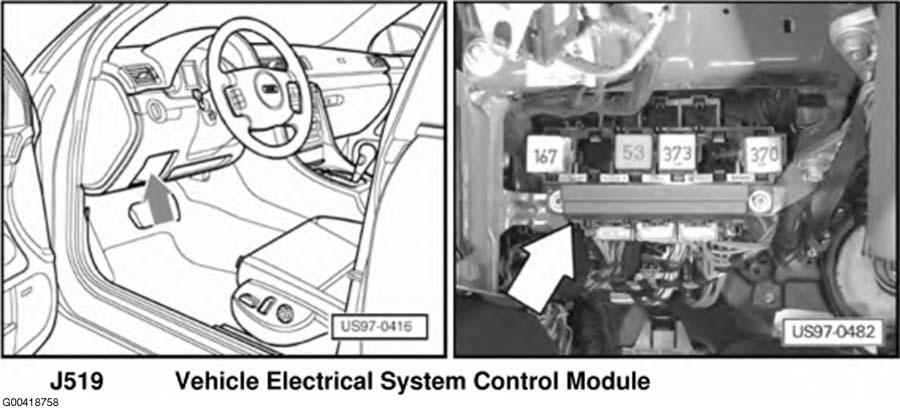

| Vehicle Electrical System Control Module | At left side of dash. See Figure. |
