ABS Control Module Connector End View (J104, T47a)

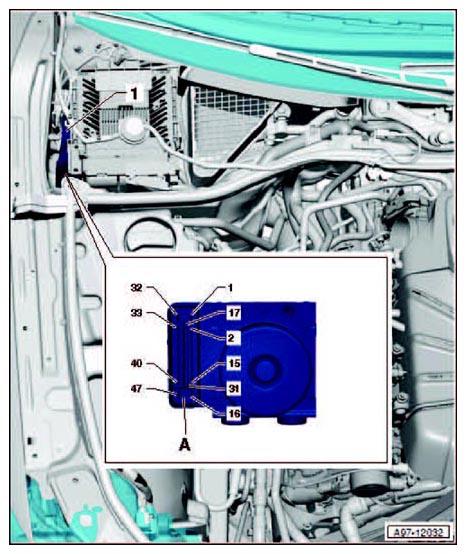

Fig 1: ABS Control Module Connector End View (J104, T47a)
Courtesy of AUDI OF AMERICA, LLC
A
ABS Control Module -J104-
1
47-Pin Connector -T47a-, black
