Distance Regulation Control Module Connector End View (J428, T8)

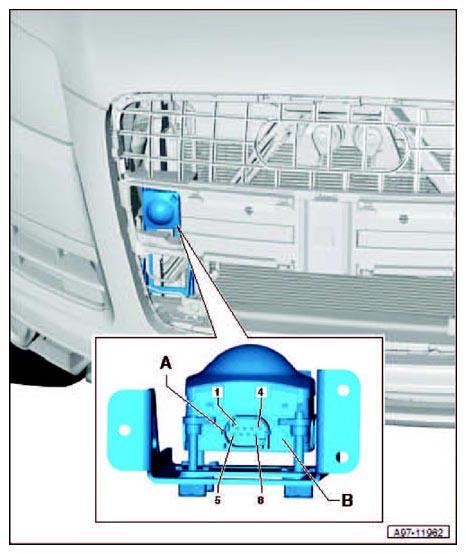

Fig 1: Distance Regulation Control Module Connector End View (J428, T8)
Courtesy of AUDI OF AMERICA, LLC
A
8-Pin Connector -T8-, black
B
Distance Regulation Control Module -J428-
