Instrument Cluster Control Module Connector End View (J285, T32a)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Instrument Cluster Control Module Connector End View (J285, T32a)

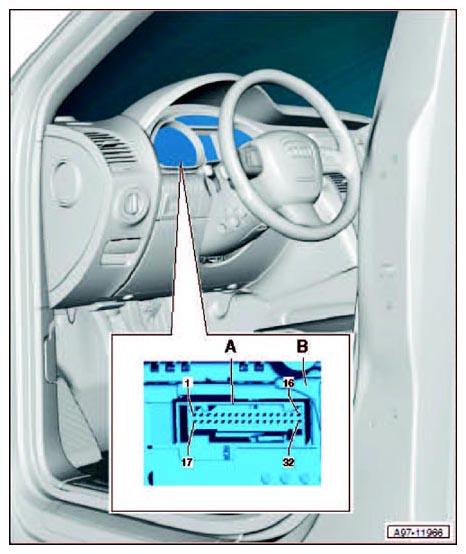

Fig 1: Instrument Cluster Control Module Connector End View (J285, T32a)
Courtesy of AUDI OF AMERICA, LLC
A
32-Pin Connector -T32a-, green
B
Instrument Cluster Control Module -J285-
