Rear Lid Control Module Connector End View (J605, T8)

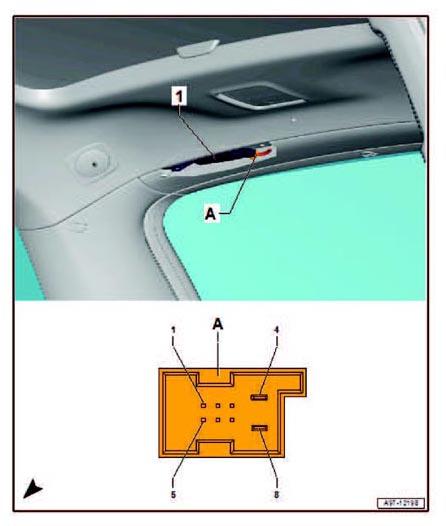

Fig 1: Rear Lid Control Module Connector End View (J605, T8)

Courtesy of AUDI OF AMERICA, LLC

1	Rear Lid Control Module -J605-
	with Motor in rear lid control module -V375-
A	8-Pin Connector -T8-

-T8- (A)	Designation
1
2	Rear Lid Control Module 2 -J756-
3	Comfort System CAN-Bus High
4	Terminal 31
5	Rear Lid Lock Button (in luggage compartment) -E406-
6	Rear Lid Control Module 2 -J756-
7	Comfort System CAN-Bus Low
8	Terminal 30
