Shift Mechanism Function Unit, Removing And Installing: Removing

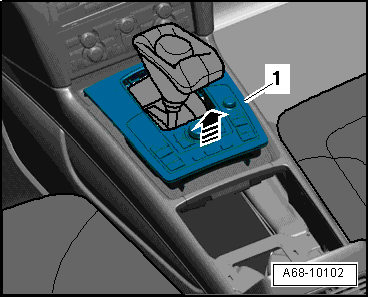

Fig 1: Pressing Up Installation Frame -1- For Multimedia Control Head -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the handle from the selector lever. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .

-- Remove the frame with the Multimedia System Control Head -E380- -1-. Refer to Multimedia System Control Head -E380- INSTALLATION FRAME, REMOVING AND INSTALLING .

-- Disconnect the connector -1-.

Fig 2: Connect Connector -1- To Selector Lever Sensor System Control Module

Courtesy of AUDI OF AMERICA, LLC

-- Remove the noise insulation -2- from the shift housing.

-- Remove the front ashtray/front storage compartment. Refer to FRONT ASHTRAY/FRONT COMPARTMENT, REMOVING AND INSTALLING .

-- Remove the bolts -arrows- and -1- from the center console bracket.

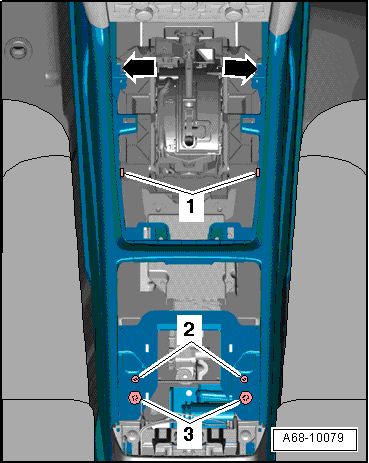

Fig 3: Identifying Screws -1 To 3- And Front Screws -Arrows-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

Fig 4: Electrical Connector -1- And Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the four bolts -arrows-.

Fig 5: Bolts -Arrows-.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The center console bracket is not shown in the illustration.

-- Tip the gearshift mechanism function unit and remove the center console bracket.

-- Press and hold the parking lock button -C-.

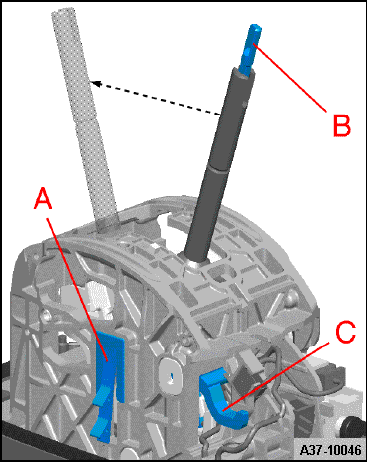

Fig 6: Identifying Selector Rod And Shift Selector Lever, Removal/Installation

Courtesy of AUDI OF AMERICA, LLC

-- Pull the selector rod -B- up and move the selector lever -arrow- into "S".

NOTE:

Ignore -A-.

Selector mechanism is shown from the front in the illustration.

-- Lift the selector mechanism function unit.

NOTE:

Do not bend or kink the selector lever cable.

-- Remove the clamping screw -1- through the opening at the top of the selector mechanism -arrow- using the Socket and KeyT40031.

-- Remove the locking plate -2- from the selector lever cable -1-.

Fig 7: Identifying Lock Washer & Selector Lever Cable

Courtesy of AUDI OF AMERICA, LLC

-- Remove selector mechanism function unit upward.
