Shift Mechanism Function Unit, Disassembling And Assembling: Overview

NOTE:

Coat the bearings and the sliding surfaces with Polycarbamide GreaseG 052 142 A2.

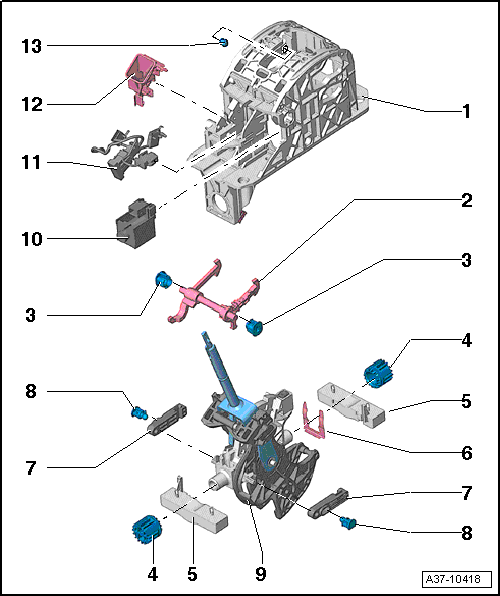

Fig 1: Identifying Selector Mechanism Function Unit Overview

Courtesy of AUDI OF AMERICA, LLC

Function Unit Housing
Selector Lever Position Locking Lever "P"
- Removing and installing. Refer to SELECTOR LEVER POSITION P LOCKING LEVER, REMOVING AND INSTALLING .
Bushings
- For the selector lever position locking lever "P".
Axial Bearing
- For the shift gate.
Bearing Shell
- For the shift gate.
- Clipped to the function unit housing.
Locking Plate
- Replace
- For the axial bearing.
Shift Bearing
- For the shift gate.
Bearings
- For the shift bearing.
Shift Gate
- Removing and installing. Refer to SHIFT GATE, REMOVING AND INSTALLING .
Shift Lock Solenoid -N110-
- Refer to Shift Lock Solenoid - N110-, REMOVING AND INSTALLING .
Transmission Park Selector Switch -F305-
- Removing and installing. Refer to Transmission Park Selector Switch - F305-, REMOVING AND INSTALLING .
Emergency Release Lever Guide
- Clipped to the function unit housing.
Stop Buffer
