Fuel Pump Control Module: Installing
- Assembly overview, refer to Fuel Tank with Attachments Assembly Overview .
- Tightening specifications, refer to Fastener Tightening Specifications .
Installation is performed in the reverse order of removal, noting the following:

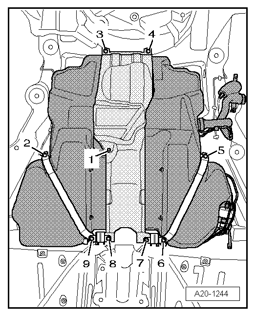

- Fasten mounting straps and carrier plate -1 to 9-.
- Fasten the fuel filler tube with ground (GND) connection -arrows-.
- After installing, check electrical connection on fuel filler neck metal ring to an empty spot on the body using an Ohm meter.
- Specified value: about 0 Ω
- Secure vent line -2- to fuel filler tube.
- Install rear right wheel housing liner. Refer to WHEEL HOUSING LINER .
- Install rear seat bench. Refer to BENCH SEAT .
- Connect battery. Observe safety precautions after connecting battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .
WARNING:
Risk of explosion due to electrostatic charge.
NOTE:
Ignore -item 1-.
