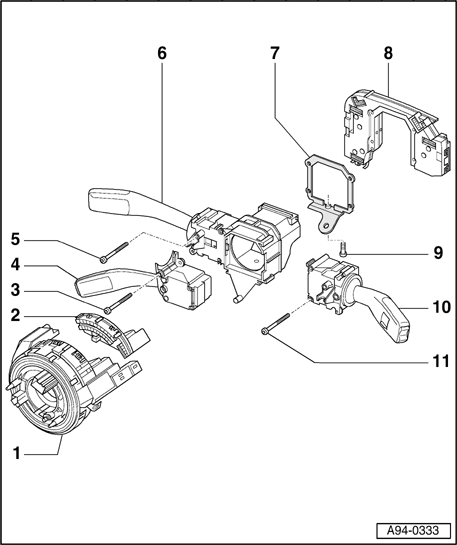

Steering Column Switch Module, Component Overview

1 - Coil connector with slip ring

• Removing and installing → Airbag Spiral Spring/Return Spring With Slip Ring, Removing and Installing

2 - Steering Angle Sensor G85

• Removing and installing → Steering Angle Sensor, Removing and Installing

3 - Socket head bolt - 0.65 Nm

4 - Cruise Control Switch E45

• Removing and installing → Cruise Control Switch, Removing and Installing

5 - Socket head bolt - 0.65 Nm

6 - Turn Signal Switch E2

• Removing and installing → Turn Signal Switch, Removing and Installing

7 - Retainer

8 - Steering Column Electronic Systems Control Module J527

• Removing and installing → Steering Column Electronic Systems Control Module, Removing and Installing
• Connector assignment of Steering Column Electronic Systems Control Module J527 → Steering Column Electronic Systems Control Module, Front Side, Connector Assignment

9 - Clamping bolt, 3 Nm

10 - Windshield Wiper/Washer Switch E22

• Removing and installing → Windshield Wiper/Washer Switch, Removing and Installing

11 - Socket head bolt - 0.65 Nm
