Steering Column Electronic Systems Control Module, Front Side, Connector Assignment

Steering Column Electronic Systems Control Module J527 is part of complete "steering column switch module" (SCSM) system. and receives signals from steering column switch, for example.
Checking Steering Column Electronic Systems Control Module J527.

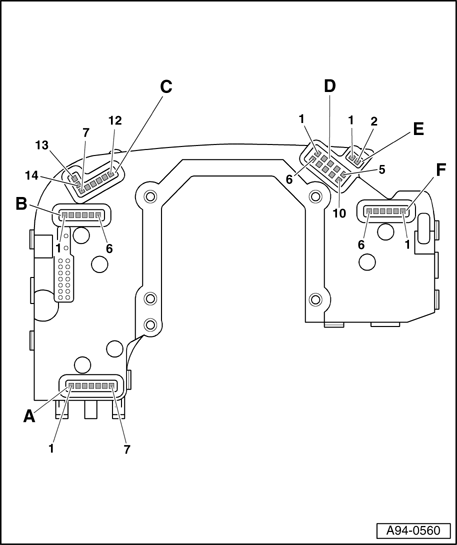

Fig 1: Steering Column Electronics Systems Control Module J527 , Front Multi-Pin Connector Assignments

Courtesy of VOLKSWAGEN UNITED STATES, INC.

A - Cruise control connector

1 - Ground (GND)

2 Fix

3 Distance

4 - 12V voltage supply

5 - Resume/touch "Off"

6 Acceleration/deceleration

7 - Locked "Off"

B - Turn signal indicator connector

1 - Ground (GND)

2 Radio telephone (special-purpose vehicles)

3 Alarm (special-purpose vehicles)

4 Not used

5 Headlight flasher/light control

6 Turn signal indicators

C - Harness connector of multi-function steering wheel/Tiptronic/heated steering wheel

7 - Tip- "-"

8 - Multi-function steering wheel "+" - Voltage supply

9 Multi-function steering wheel/data

10 - Tip- "+"

11 Multi-function steering wheel/dimmer

12 - Tiptronic Ground (GND)

13 - Heated steering wheel "+"

14 - Heated steering wheel "-"

D - Steering Angle Sensor

1 Light barrier 5

3 Light barrier 1

4 - 12V voltage supply

5 - 5 V voltage supply

6 Light barrier 6

7 Light barrier 4

8 Light barrier 2

9 Steering Angle Sensor ground

10 Light barrier 7

E - Horn

1 Horn ground

2 Horn

F - Wiper system

1 - Ground (GND)

2 Intermittent wipe potentiometer

3 - Board computer

4 Not used

5 Wash

6 Wipe
