Accelerator Pedal Module Version 2 Assembly Overview

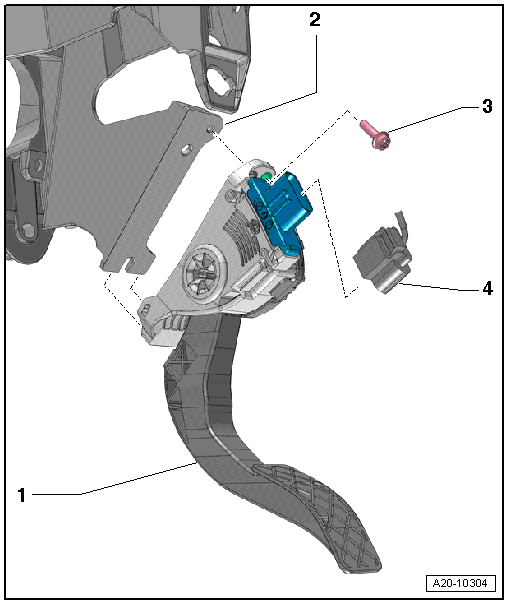

Fig 1: Accelerator Pedal Module Version 2 Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. Accelerator Pedal Module
   • With Throttle Position (TP) Sensor -G79- and Accelerator Pedal Position Sensor 2 -G185-.
   • Removing and installing, refer to Accelerator Pedal Module, Version 2 .
2. Pedal Bracket
3. Bolt, 8 Nm
4. Electrical Harness Connector
