Input Shaft, Output Shaft, Reverse Drive Gear And Shift Rails/Shift Forks Assembly Overview: Notes

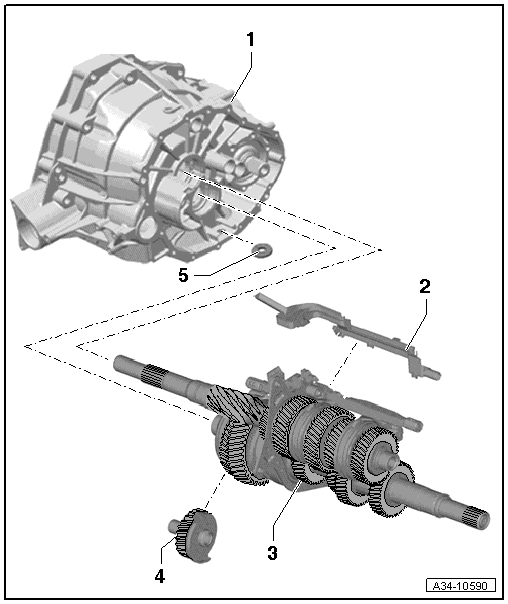

Fig 1: Identifying Input Shaft, Output Shaft, Reverse Drive Gear And Shift Rails/Shift Forks Assembly

Courtesy of AUDI OF AMERICA, LLC

1. Transmission Housing
   • With differential and pinion
2. Oil Collector Tray
   • Clipped into the bearing bracket and the gearshift rail/shift fork for 3rd and 4th gears
3. Input and Output Shafts with Shift Fork Group
   • Disassembling and assembling, refer to SHIFT FORK GROUP, INPUT SHAFT, 1ST, 2ND AND REVERSE GEAR OUTPUT SHAFTS ASSEMBLY OVERVIEW
4. Reverse Drive Gear
   • With support/reverse shaft
   • Reverse drive gear assembly overview REVERSE DRIVE GEAR ASSEMBLY OVERVIEW
5. Magnet
   • Clean
