Engine Number/Engine Characteristics
NOTE:
The Engine Number Is Only Visible If The Front Engine Cover Is Removed.

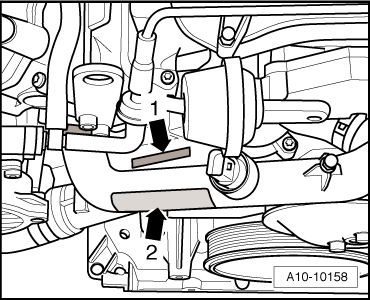

- The engine number ("engine code" and "serial number") is located at front on cylinder block at top -arrow 1-.
- Engine codes beginning with "C" are four-digit.
- The first three digits of the engine code stand for displacement and the mechanical structure of the engine. They are stamped in the cylinder block, including the serial number.
- The fourth digit describes the engine output and torque and depends on the engine control module.
NOTE:
Ignore -arrow 2-.
The four digit engine code is on the type plate, vehicle data label and engine control module.
For locations of the type plate and vehicle data label. Refer to the appropriate service information.
| Codes | CALA | |
|---|---|---|
| Displacement | liter | 3.197 |
| Output | kW at RPM | 195/5000 |
| Torque | Nm at RPM | 330/3000 |
| Bore | diameter in mm | 85.5 |
| Stroke | mm | 92.8 |
| Compression ratio | 12.5 | |
| RON | at least | 95 1) |
| Fuel injection and ignition system | Simos | |
| Ignition sequence | 1-4-3-6-2-5 | |
| Turbocharger, G-Charger | no | |
| Knock control | 2 sensors | |
| Oxygen sensor regulation | 4 heated oxygen sensors | |
| Variable valve timing | Intake and exhaust | |
| Variable intake manifold | yes | |
| Secondary Air Injection System | Emissions standard EU4: no Emissions standard EU5 and ULEV2: yes | |
| Valve per cylinder | 4 | |
|
||
