Airbag Control Module Connector End View (J234, T75)

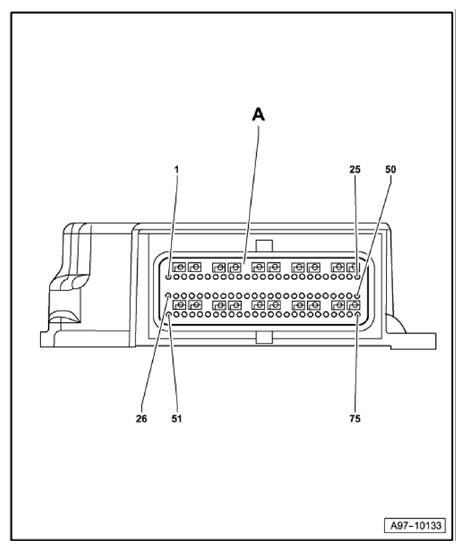

Fig 1: Airbag Control Module Connector End View (J234, T75)
Courtesy of AUDI OF AMERICA, LLC
A
75-Pin Connector, grey -T75- (USA white)
