Energy Management Module Connector End View (J644)

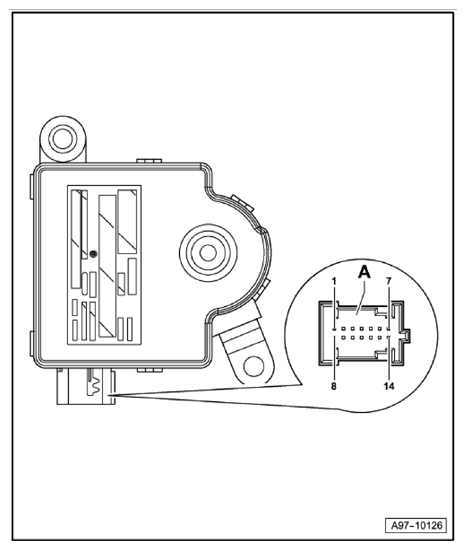

Fig 1: Energy Management Module Connector End View (J644)
G10359760Courtesy of AUDI OF AMERICA, LLC
A 14-Pin Connector
