Navigation System Component Location Overview (Japan)

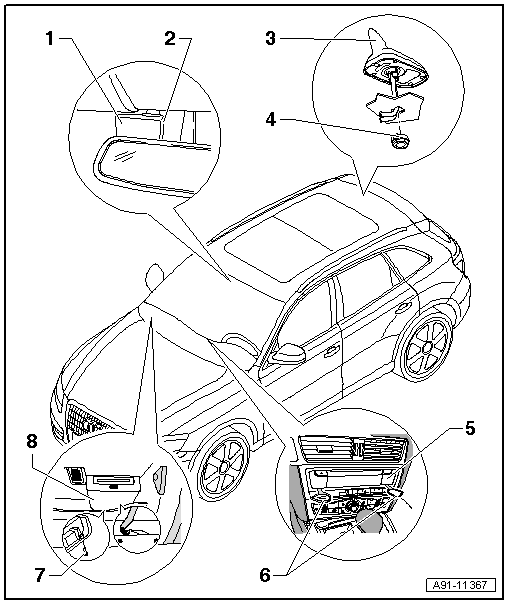

Fig 1: Navigation System Components Location

Courtesy of AUDI OF AMERICA, LLC

1. Traffic Data Antenna -R173-
   • Removing and installing, refer to TRAFFIC DATA ANTENNA, REMOVING AND INSTALLING .
2. Pin
3. Roof Antenna -R216-
   • Antenna systems, refer to ANTENNA SYSTEMS .
4. Nut
   • 6 Nm
5. Information Electronics Control Module 1 -J794-
   • Connector assignment, refer to NAVIGATION CONNECTOR ASSIGNMENT, JAPAN .
   • Removing and installing, refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
6. Radio Removal Tool T10057
7. Pin
8. Chip Card Reader Control Module -J676-
   • Connector assignment, refer to Chip Card Reader Control Module -J676-, CONNECTOR ASSIGNMENT .
   • Removing and installing, refer to CHIP CARD READER CONTROL MODULE, REMOVING AND INSTALLING .
