Level Control System Sensor, Removing And Installing: Removing

-- Remove the nuts -1- and the cover -2-.

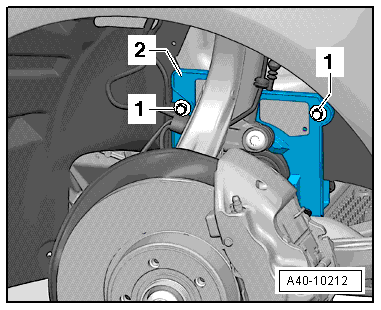

Fig 1: Identifying Nuts And Cover

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2-.

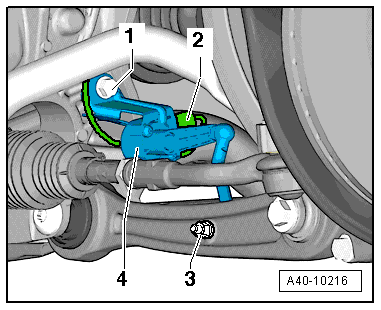

Fig 2: Disconnecting Harness Connector

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -3-.

-- Remove the bolt -1-.

-- Remove the level control system sensor -4-.
