Nut Versions For The Control Arm And Guide Link Bracket

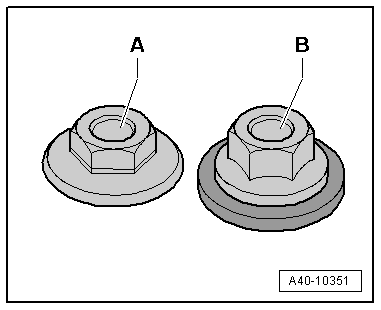

Fig 1: Identifying Nut Versions For Control Arm And Guide Control Arm Bracket
GWWA40-10351Courtesy of AUDI OF AMERICA, LLC

Tightening specification: 145 Nm

Tightening specifications: 110 Nm

Tightening specification: 120 Nm

Tightening specification: 140 Nm
