Engine Sound Generator Control Module Connector End View (J943, T8s)

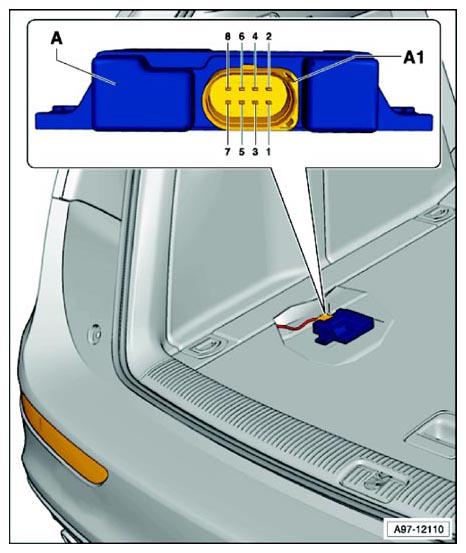

Fig 1: Engine Sound Generator Control Module Connector End View (J943, T8s)
Courtesy of AUDI OF AMERICA, LLC
1
Engine Sound Generator Control Module -J943-
2
8-Pin Connector -T8s-
