Cap And Guide Pin, Replacing: Notes

The guide pins must be removed if the protective caps are damaged.

NOTE:

The single-piston brake 1LA/1LJ/1ZB/1ZT is described.

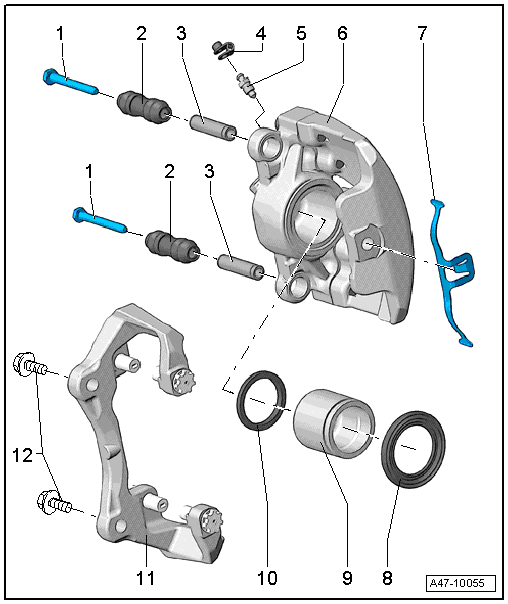

Fig 1: Brake Caliper Exploded View
GWWA47-10055Courtesy of AUDI OF AMERICA, LLC
