Structure-Borne Sound Control Module Connector End View (J869, T6s)

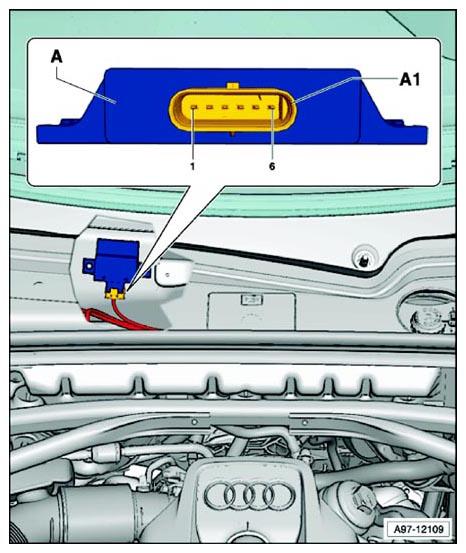

Fig 1: Structure-Borne Sound Control Module Connector End View (J869, T6s)
Courtesy of AUDI OF AMERICA, LLC
A
Structure-Borne Sound Control Module -J869-
A1
6-Pin Connector -T6s-
