Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

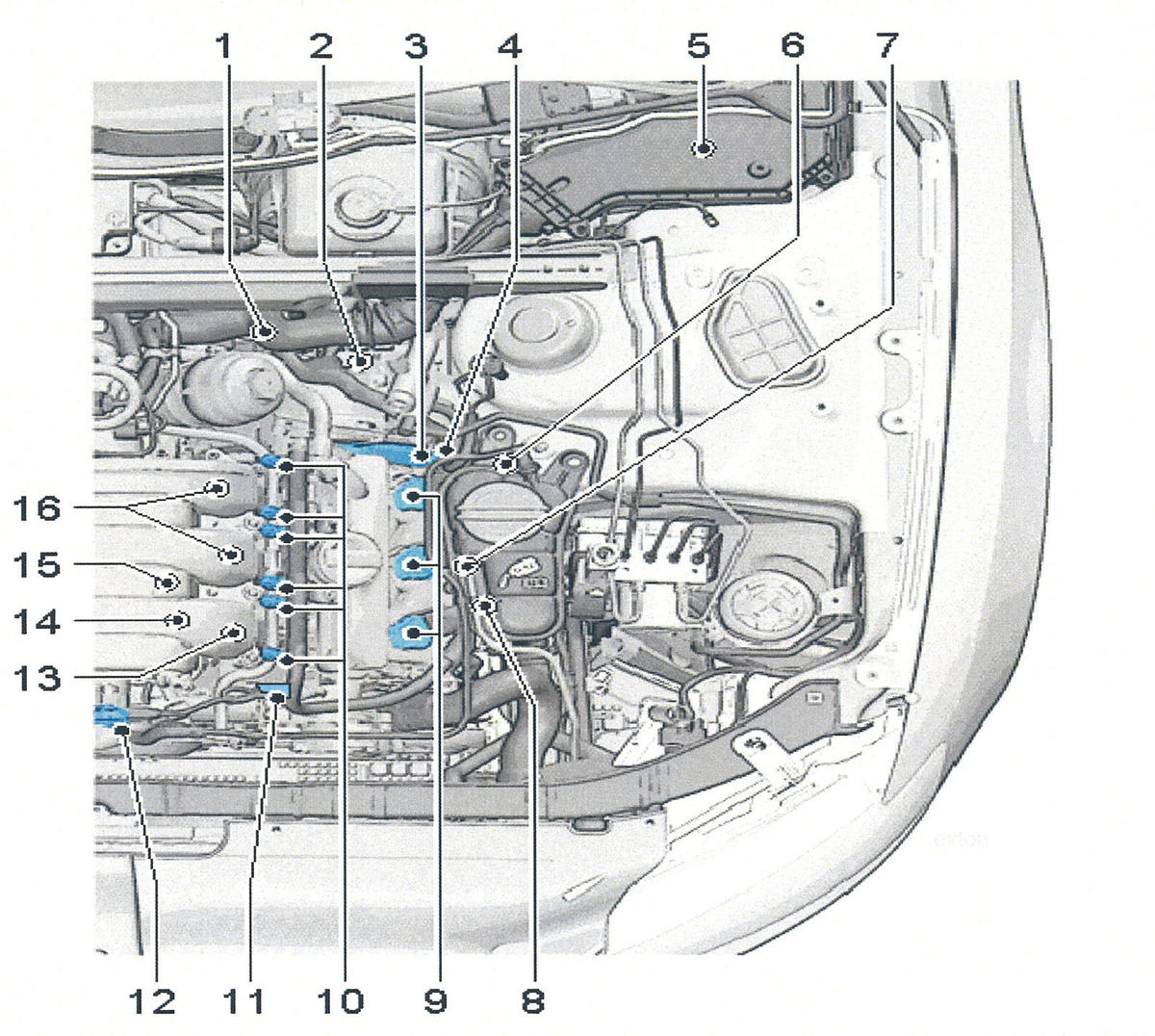

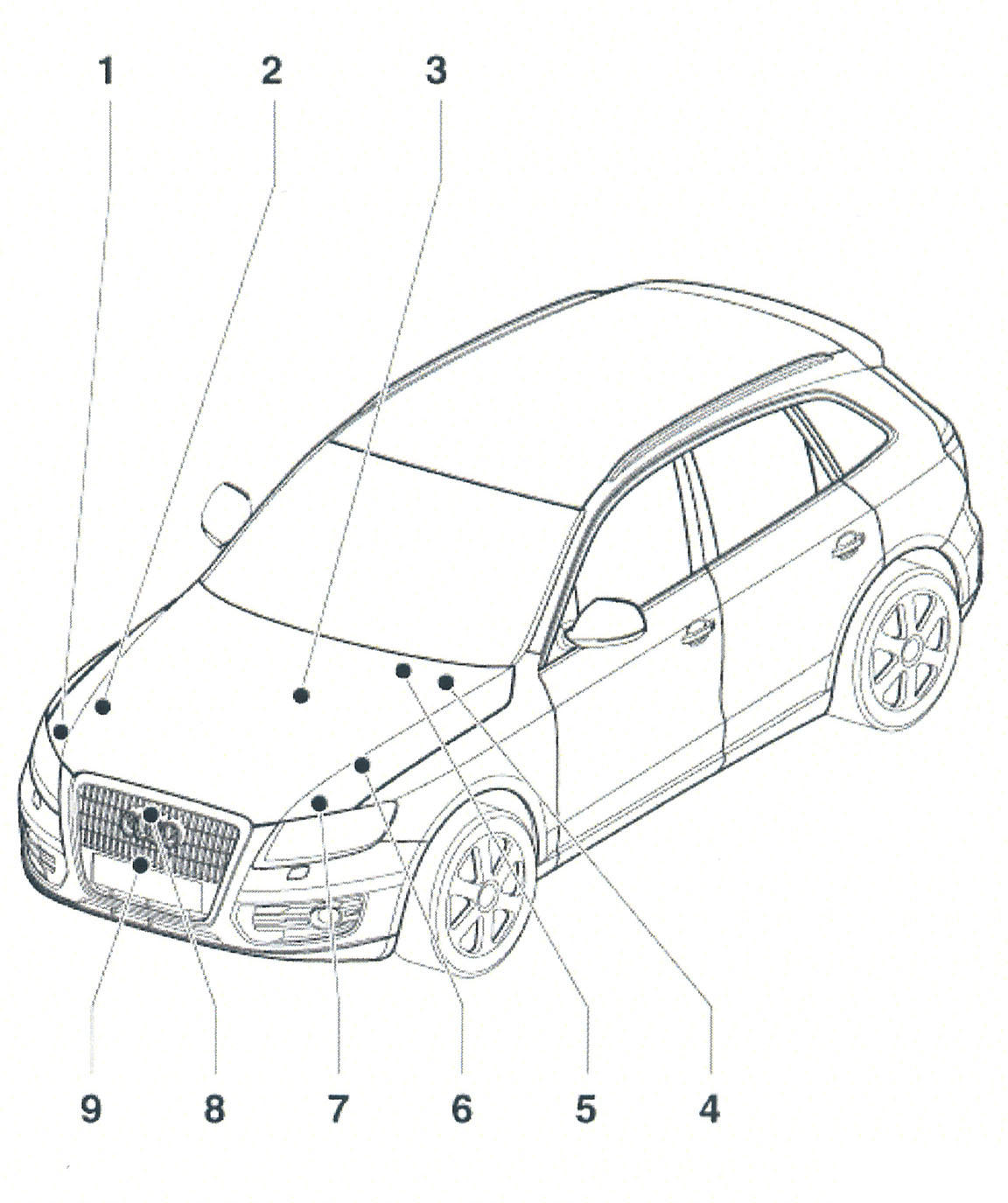

| ABS Control Module J104 (6) | Left side of engine compartment. See Figure. |

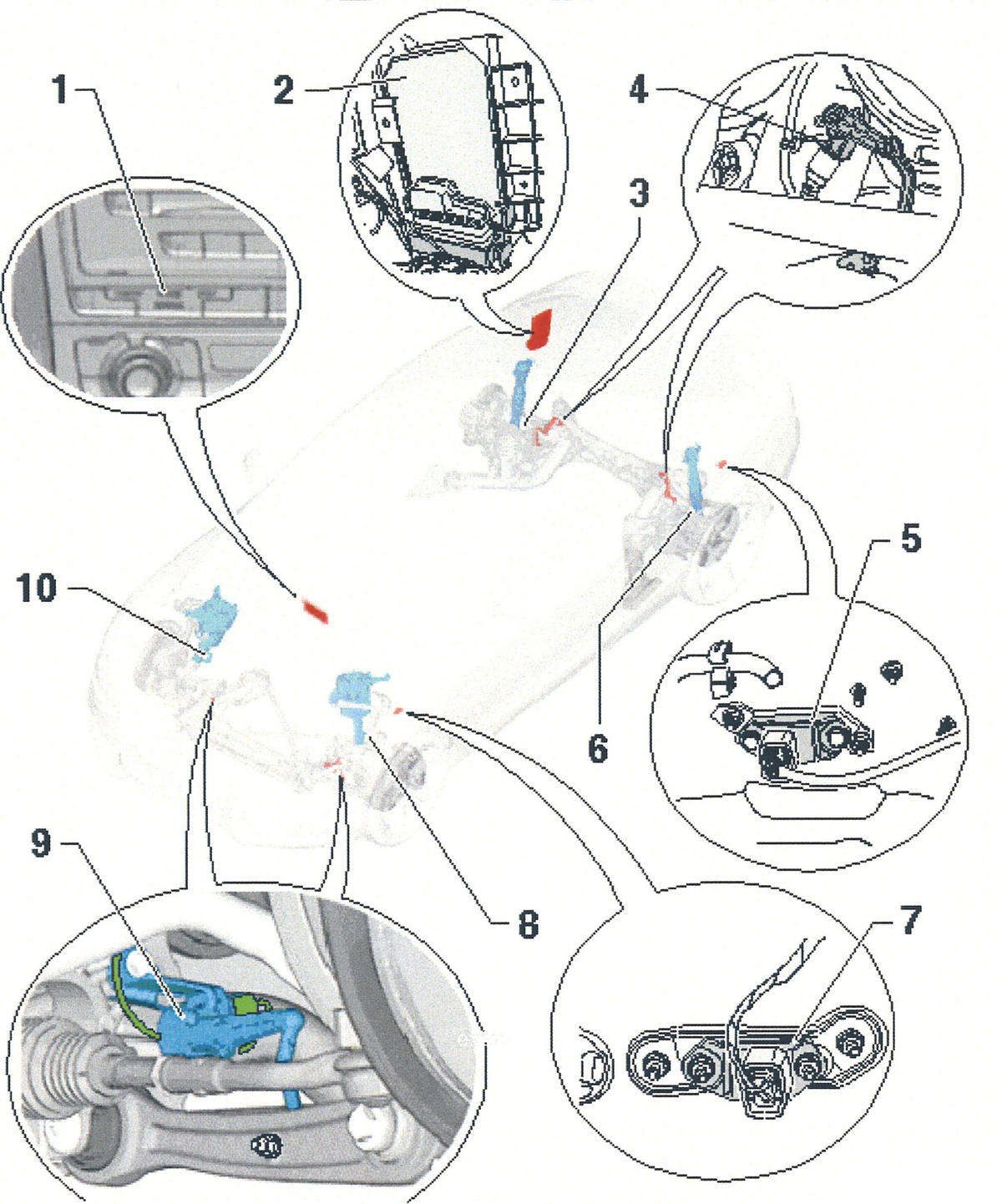

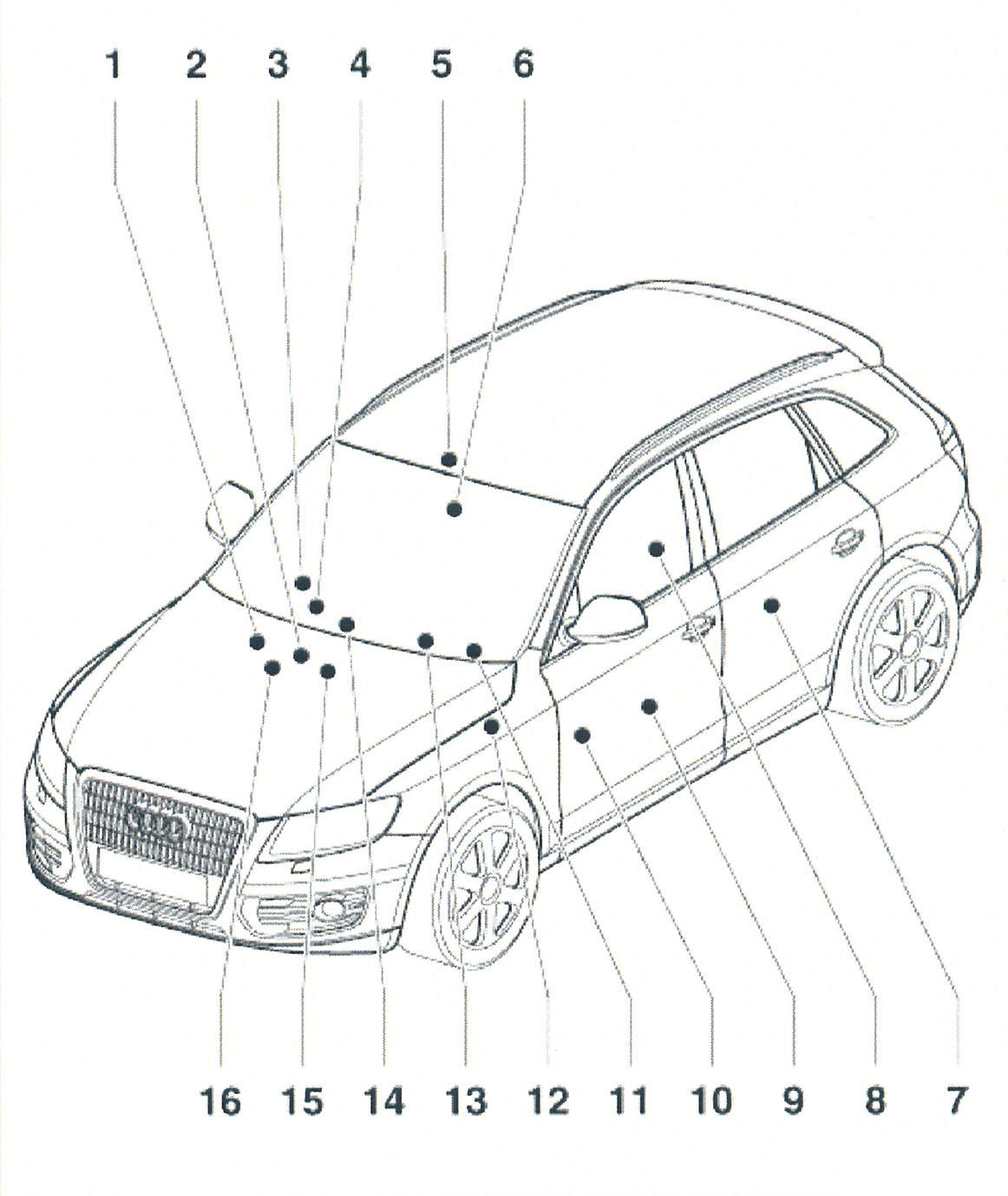

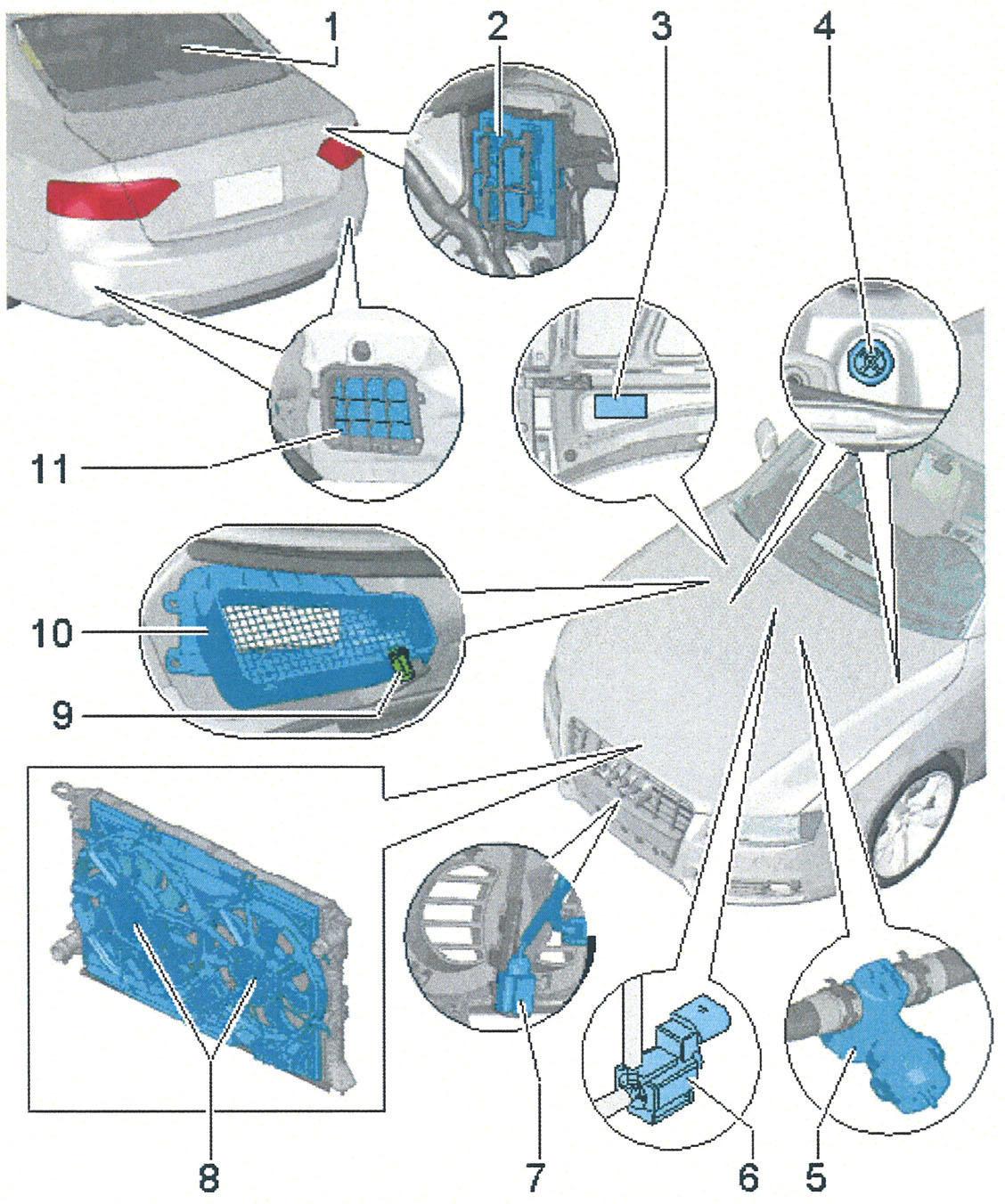

| Active Steering Control Module J792 (1) | Driver's front floor. See Figure. |
| Airbag Control Module J234 (8) | Below rear of center console. See Figure. |
| Auxiliary Heat Control Module J364 (2) | Behind right wheel housing. See Figure. |
| Comfort System Central Control Module J393 (2) | Left side of trunk. See Figure. |
| Control Module For Information Electronics 1 (With MMI) J794 (14) | Center of dash. See Figure. |
| Cooling Fan Control Module J293 (9) | On radiator. See Figure. |
| Cooling Fan Control Module 2 J671 (9) | On radiator. See Figure. |
| Direct Shift Gearbox (DSG) Mechatronic J743 (3) | On transmission. See Figure. |
| Driver's Door Control Module J386 (10) | Driver's door. See Figure. |
| Electronic Damping Control Module J250 (2) | Right side of luggage compartment. See Figure. |

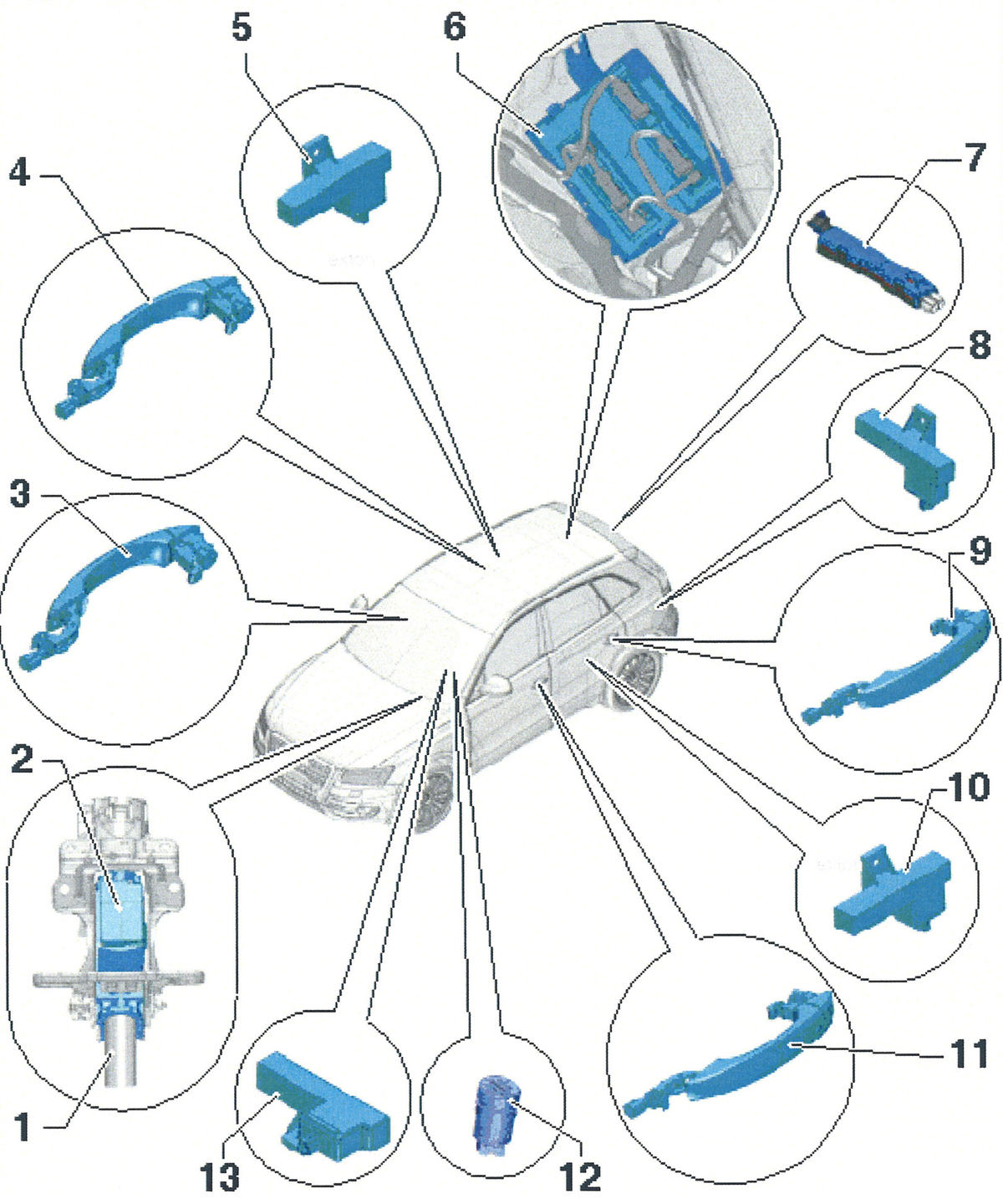

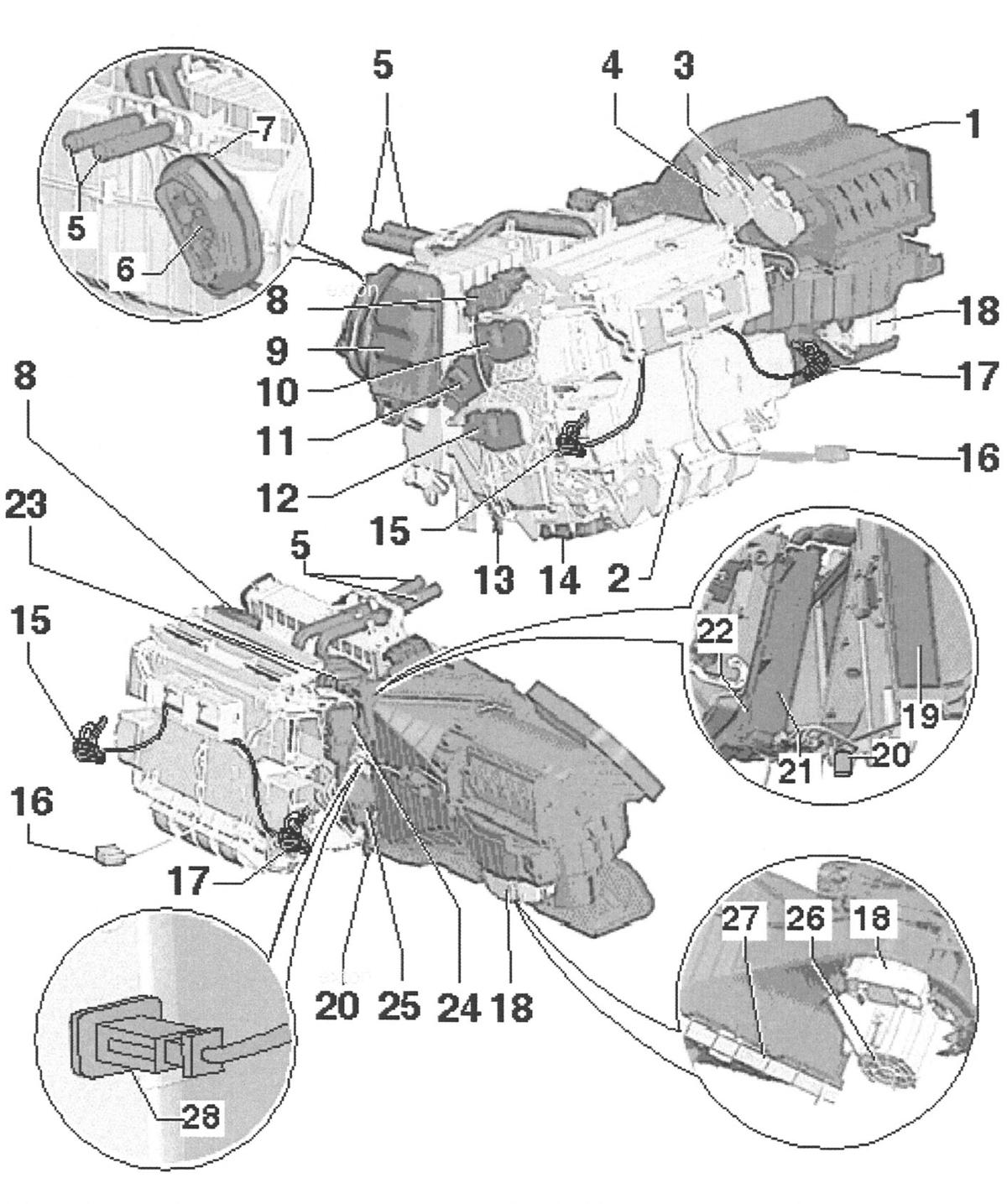

| Electronic Steering Column Lock Control Module J764 (2) | On steering column. See Figure. |
| Electronic Steering Column Lock Control Module J764 (11) | On steering column. See Figure. |
| Engine Control Module (ECM) J623 (5) | In plenum chamber driver's side. See Figure. |
| Fresh Air Blower Control Module J126 (18) | Below blower motor assembly. See Figure. |
| Front Passenger's Door Control Module J387 (3) | Front passenger door. See Figure. |
| Garage Door Opener Control Module J530 (8) | Center of grille. See Figure. |
| Headlamp Range Control Module J431 (1) | Behind glove compartment. See Figure. |
| Headlamp Range/Cornering Lamp Control Module J745 (1) | Behind glove compartment. See Figure. |

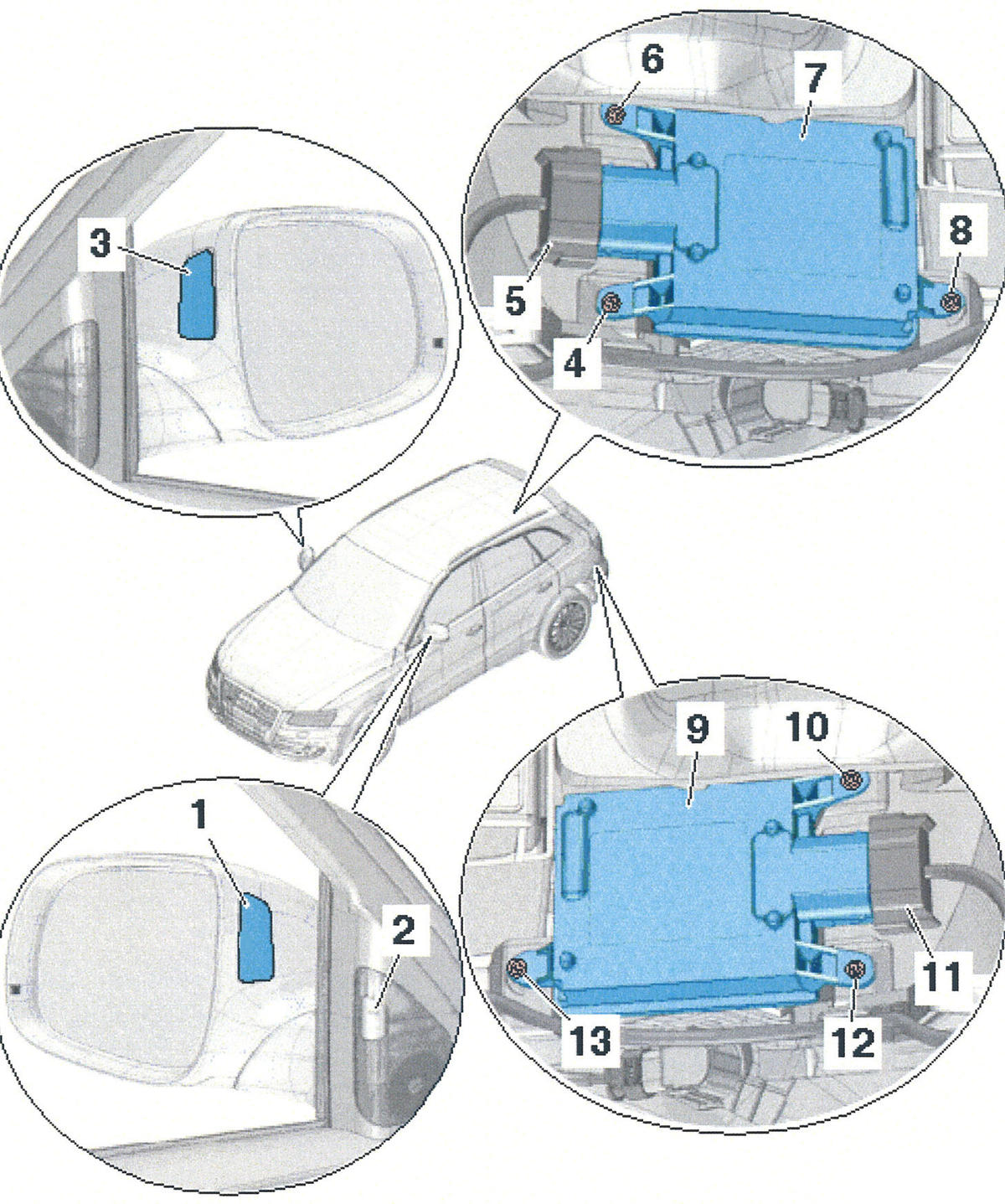

| Lane Change Assistance Control Module J769 (9) | Left rear cargo area. See Figure. |
| Left Rear Door Control Module J388 (7) | In left rear door. See Figure. |
| Lane Change Assistance Control Module 2 J770 (7) | Right rear cargo compartment. See Figure. |
| Memory Seat/Steering Column Adjustment Control Module J136 (9) | Below driver's seat. See Figure. |
| Multi-Function Steering Wheel Control Module J453 (11) | On steering column. See Figure. |

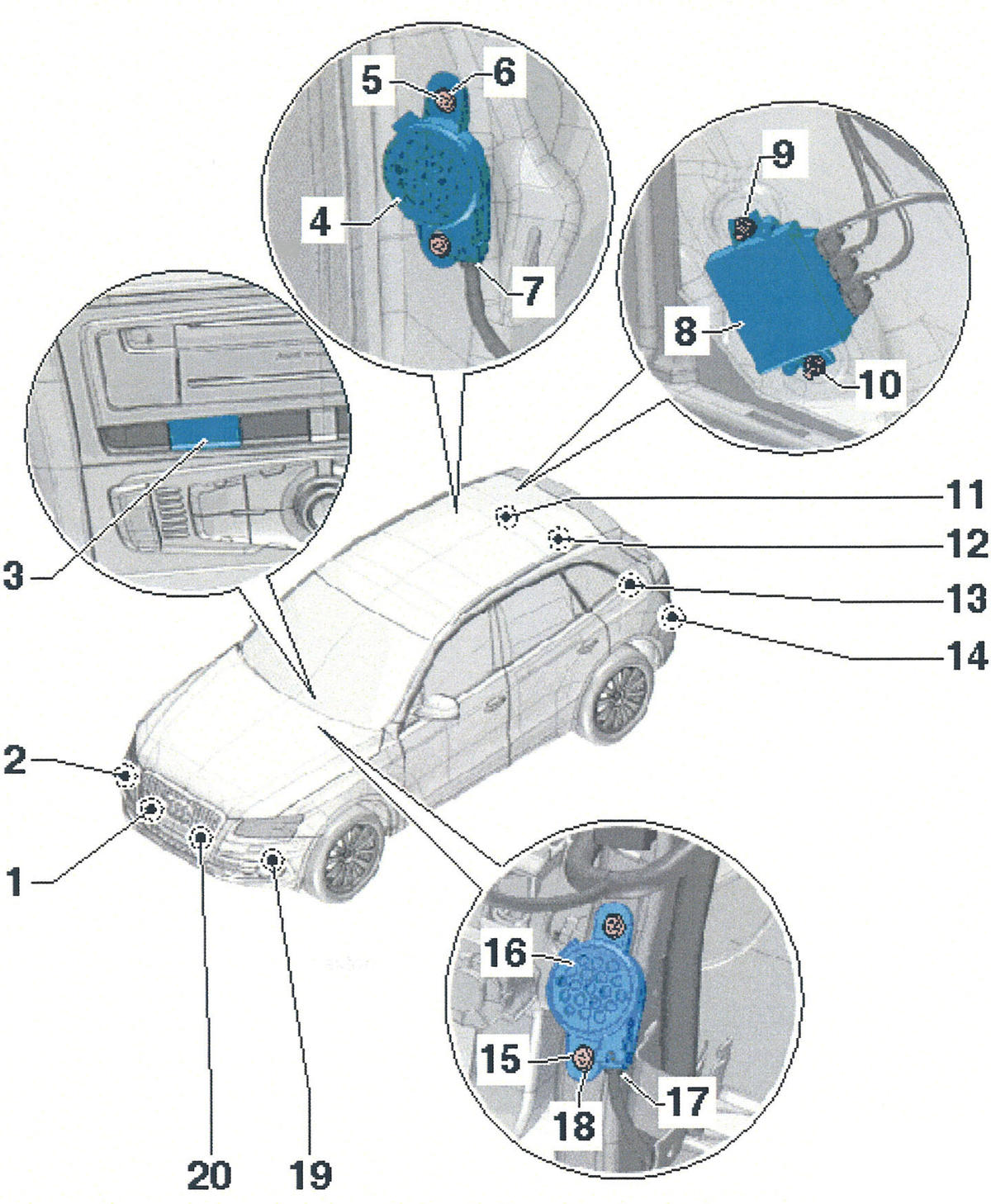

| Parking Aid Control Module J446 (8) | Left rear cargo area. See Figure. |
| Passenger Memory Seat Control Module J521 (4) | Below front passenger's seat. See Figure. |
| Power Sunroof Control Module J245 (4) | Front head liner. See Figure. |

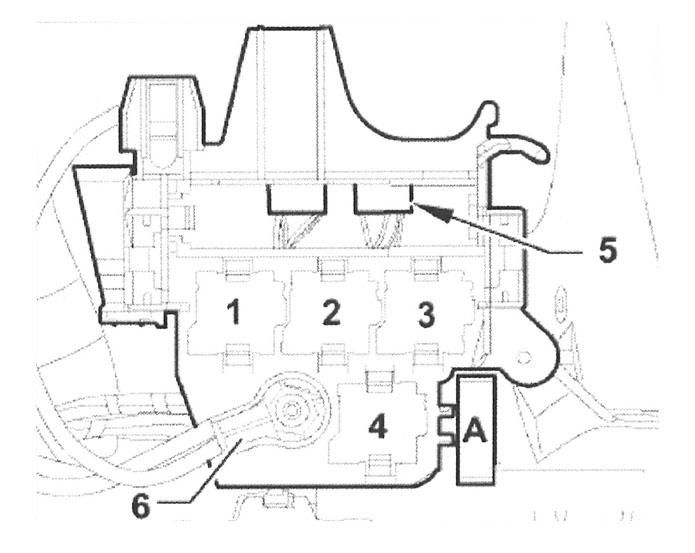

| Remote Taxi Alarm Control Module J601 (4) | Relay/fuse panel with vehicle electrical system control module J519. See Figure. |
| Right Rear Door Control Module J388 (8) | In right rear door. See Figure. |
| Roof Blind Control Module J394 (5) | Rear of open-sky-system roof opening panel. See Figure. |
| Special Purpose Vehicle Control Module J608 (4) | Relay/fuse panel with vehicle electrical system control module J519. See Figure. |
| Steering Column Electronic Systems Control Module J527 (11) | On steering column. See Figure. |
| Telephone Transceiver R36 (4) | Below front passenger seat. See Figure. |

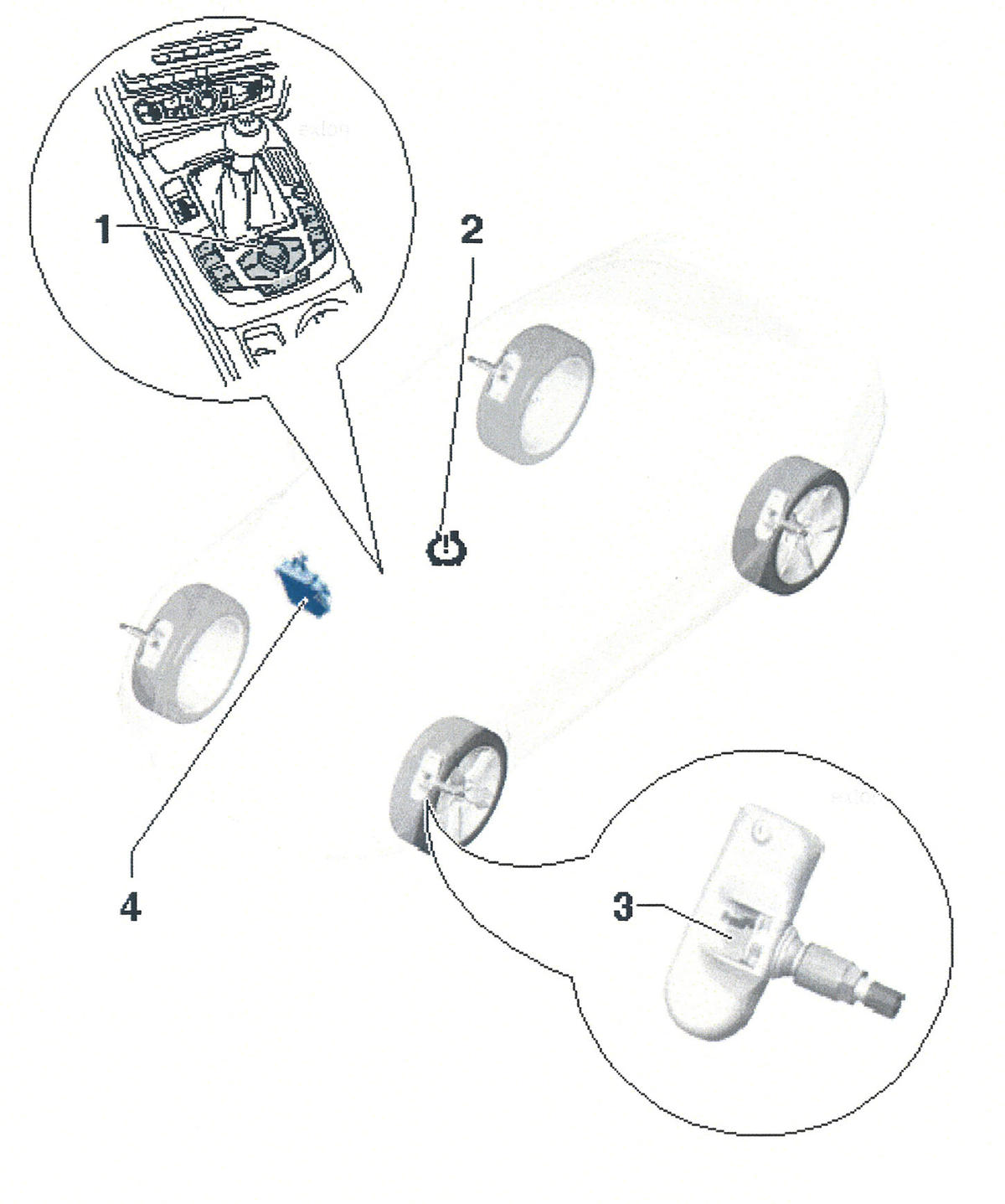

| Tire Pressure Monitoring Control Module J502 (40) | Right front footwell area. See Figure. |
| Transmission Control Module J217 (3) | On transmission. See Figure. |

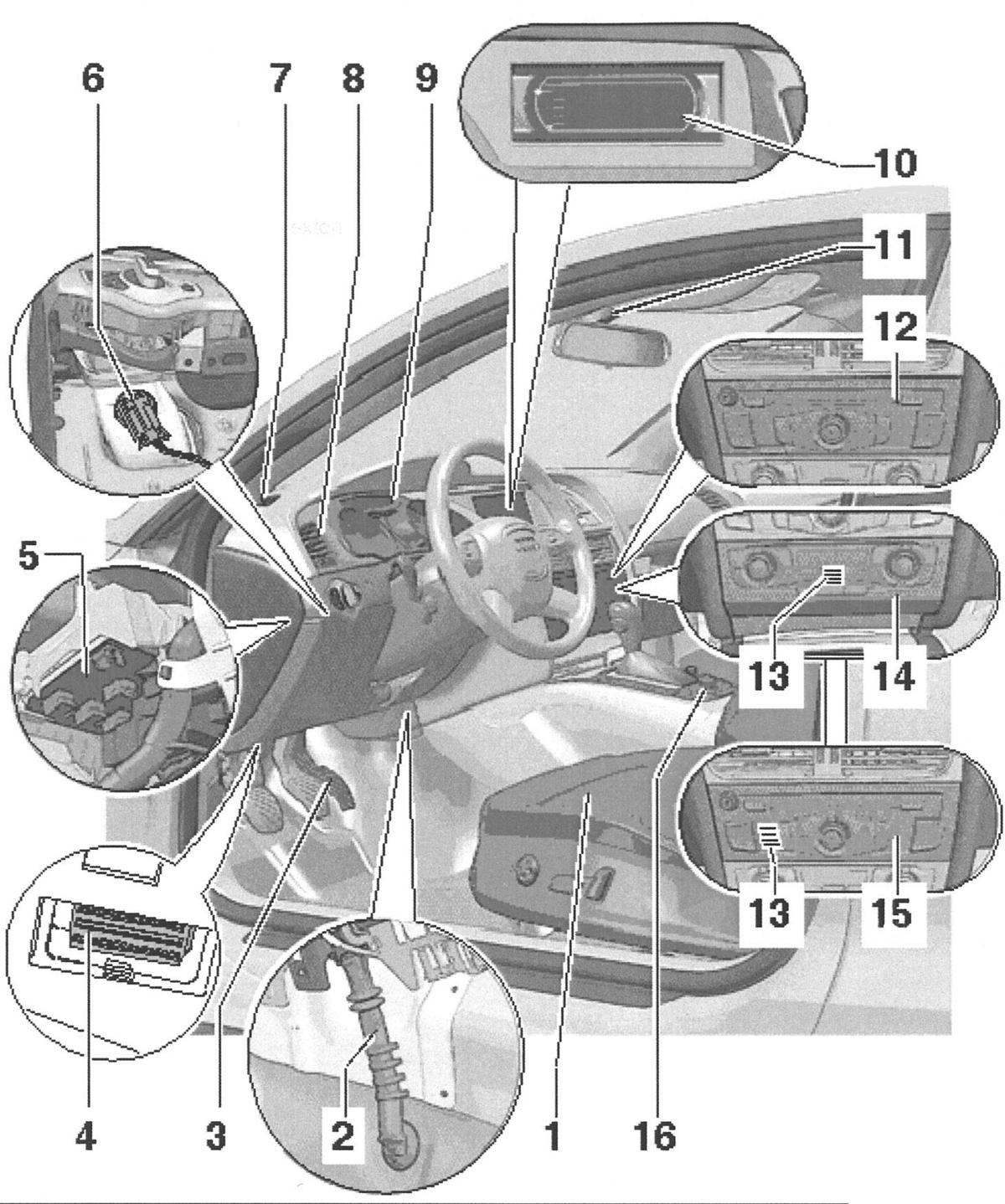

| Vehicle Electrical System Control Module J519 (5) | Left side of dash. See Figure. |
| Vehicle Electrical System Control Module J519 (12) | Driver's side dash. See Figure. |
| Wiper Motor Control Module J400 (5) | In plenum chamber. See Figure. |
