Control Module For Emergency Call Module And Communication Unit -J949-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment.
-- Move the ignition key outside of the vehicle to prevent the ignition from switching on unintentionally.
-- Remove the glove compartment. Refer to STORAGE COMPARTMENTS, COVERS AND TRIM .

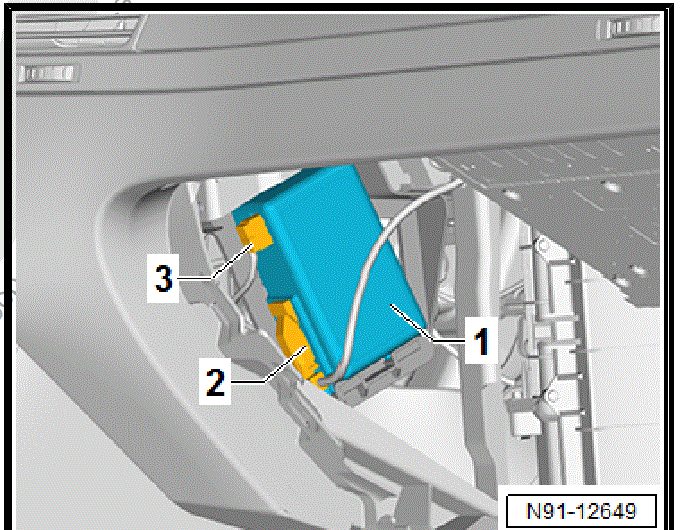

-- Disconnect the connectors -2- and -3- from the Control Module for Emergency Call Module and Communication Unit -J949- -1-.
-- Push the retaining bracket -2- in direction of -arrow A-. While doing so, move the Control Module for Emergency Call Module and Communication Unit -J949- in direction of -arrow B-.
-- Remove the Control Module for Emergency Call Module and Communication Unit -J949- -1- toward the rear.
