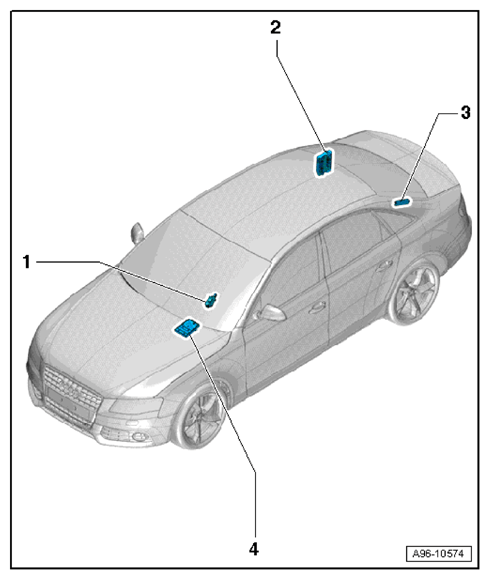

Access/Start Authorization System Assembly Overview: Notes

  1. Access/Start Authorization Switch -E415-
    • Component location: In instrument panel, driver's side
  2. Comfort System Central Control Module -J393-
    • Component location: Behind right luggage compartment side trim
  3. Central Locking and Anti-Theft Alarm System Antenna -R47-
    • Integrated in the rear window
  4. Electronic Steering Column Lock Control Module -J764-
    G12760167Courtesy of AUDI OF AMERICA, LLC
