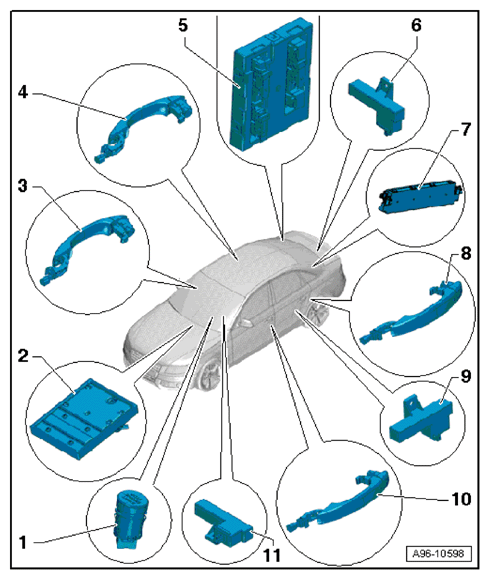

Keyless Access System Assembly Overview: Notes
- Access/Start Authorization Button -E408-
- Component location: In installation frame for Multimedia Control Head -E380-
- Electronic Steering Column Lock Control Module -J764-
- Component location: On steering column → ELECTRONIC STEERING COLUMN LOCK CONTROL MODULE
- Passenger's Side Outside Door Handle
- With the Right Front Outside Door Handle Touch Sensor -G606-
- Rear Passenger Side Exterior Door Handle
- With the Right Rear Outside Door Handle Touch Sensor -G418-
- Comfort System Central Control Module -J393-
- Component location: Behind right luggage compartment side trim
- Luggage Compartment Access/Start Authorization Antenna -R137-
- Component location: An left luggage compartment rear lid end panel → LUGGAGE COMPARTMENT ACCESS/START AUTHORIZATION ANTENNA
- Central Locking and Anti-Theft Alarm System Antenna -R47-
- Integrated in the rear window
- Access/Start Authorization System Assembly Overview location → Item 3
- Rear Driver Side Exterior Door Handle
- With the Left Rear Outside Door Handle Touch Sensor -G417-
- Left Access/Start Authorization Antenna -R200-
- Component location: On left rear door → LEFT ACCESS/START AUTHORIZATION ANTENNA
- Driver's Side Outside Door Handle
- With the Left Front Outside Door Handle Touch Sensor -G605-
- Interior Access/Start Authorization Antenna 1 -R138-
- Component location: Beneath front center console → INTERIOR ACCESS/START AUTHORIZATION ANTENNA
