Cd Changer -R41-/DVD Changer -R161-

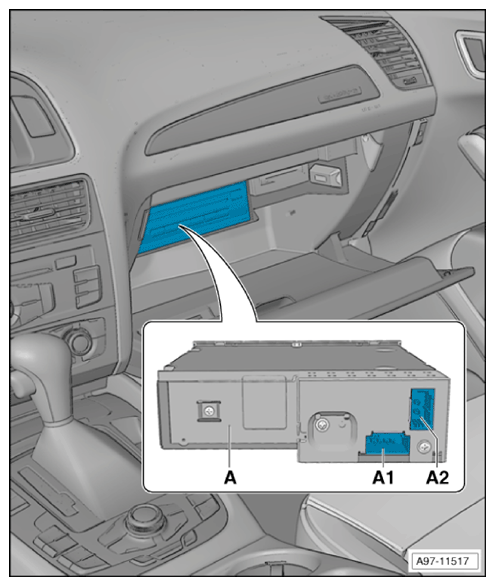

Component Location:

In Glove Compartment

  1. A  - CD Changer -R41-/DVD Changer -R161-
  2. A1  - 8-Pin Connector -T8aa-
  3. A2  - Double Connector -T2dm-
G12766906Courtesy of AUDI OF AMERICA, LLC
