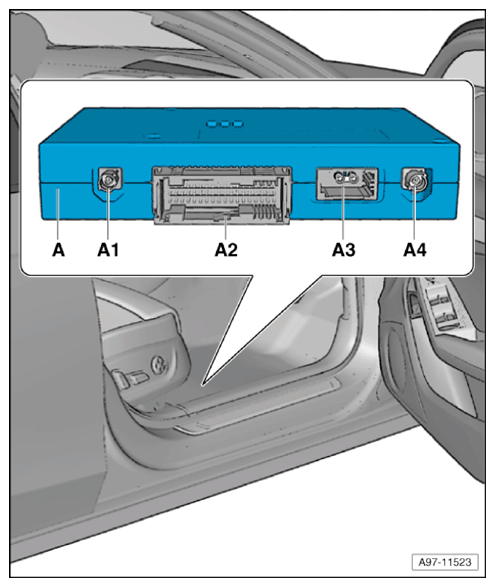

Telephone Transceiver -R36-

Component Location:

In Front Right Footwell.

  1. A  - Telephone Transceiver -R36-
  2. A1  - Connector -B- (Bluetooth Antenna)
  3. A2  - 54-Pin Connector -T54a-
  4. A3  - Connector -C- (Fibre Optic Conductor)
  5. A4  - Connector -D- (Telephone Antenna)
G12766913Courtesy of AUDI OF AMERICA, LLC
