Left High-Intensity Gas Discharge Lamp Control Module -J343-, From Model Year 2013

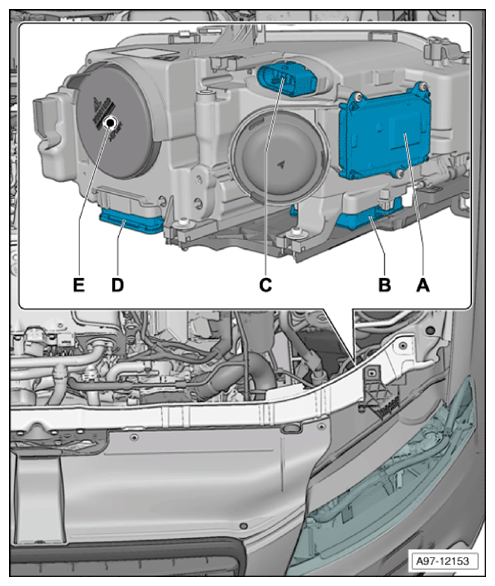

Component Location:

On Left Headlamp.

  1. Left Headlamp Power Output Stage -J667-
  2. Left Daytime Running Lamp and Parking Light Control Module -J860-
  3. 14-Pin Connector -T14a-
  4. Left High-intensity Gas Discharge Lamp Control Module -J343-
  5. Left Side Marker Lamp Power Output Stage -J986-
G12760081Courtesy of AUDI OF AMERICA, LLC
