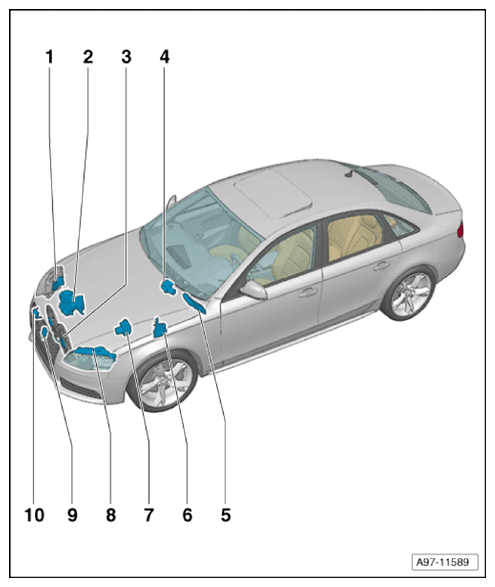

Overview Of Control Modules
NOTE:
Overview Be Valid Also For Avant (5-Door Models)!
- 1 - Right High-intensity Gas Discharge Lamp Control Module -J344-
- Component Location and Connector, through model year 2012: → RIGHT HIGH-INTENSITY GAS DISCHARGE LAMP CONTROL MODULE -J344-, THROUGH MODEL YEAR 2012
- Component Location and Connector, from model year 2013: → 685 - GROUND CONNECTION 1 (ON RIGHT FRONT LONG MEMBER)
- 2 - Auxiliary Heater Control Module -J364-
- Component Location and Pin Connectors: → 639 - GROUND CONNECTION (ON LEFT A-PILLAR)
- 3 - Coolant Fan Control (FC) Control Module -J293-/Coolant Fan -V7-
- Component Location and connectors for models with 400 W or 600 W coolant fan: → 730 - GROUND CONNECTION 1 (ON RIGHT REAR WHEEL HOUSING) -ARROW-
- Component Location and connectors for models with 800 W or 1000 W coolant fan: → 62 - GROUND CONNECTION (ON RIGHT C-PILLAR) -UPPER ARROW-
- 3 - Coolant Fan Control (FC) Control Module 2 -J671-/Coolant Fan 2 -V177-
- Component Location and connectors for models with 800 W or 1000 W coolant fan: → 62 - GROUND CONNECTION (ON RIGHT C-PILLAR) -UPPER ARROW-
- 4 - Wiper Motor Control Module -J400-
- Component Location and Pin Connector: → 687 - GROUND CONNECTION 1 (ON CENTER TUNNEL)
- 5 - Engine Control Module (ECM) -J623-
- Component Location and connectors for models with -T60- and -T94-): → OVERVIEW OF GROUND CONNECTIONS (5-DOOR MODELS (AVANT))
- Component Location and connectors for models with -T91- and -T105-): → Component Location Engine Control Module (ECM) -J623- for models with (-T91- and -T105-):
6 - Transmission Control Module (TCM) -J217-/Direct Shift Gearbox (DSG) Mechatronic -J743-
- Component Location and Pin Connectors: → TRANSMISSION CONTROL MODULE (TCM) -J217-/DIRECT SHIFT GEARBOX (DSG) MECHATRONIC -J743-
7 - ABS Control Module -J104-
- Component Location and Pin Connector: → ABS CONTROL MODULE -J104-
8 - Left High-intensity Gas Discharge Lamp Control Module -J343-
- Component Location and Connector, through model year 2012: → LEFT HIGH-INTENSITY GAS DISCHARGE LAMP CONTROL MODULE -J343-, THROUGH MODEL YEAR 2012
- Component Location and Connector, from model year 2013: → LEFT HIGH-INTENSITY GAS DISCHARGE LAMP CONTROL MODULE -J343-, FROM MODEL YEAR 2013
9 - Garage Door Opener Control Module -J530-
- Component Location and Pin Connector: → GARAGE DOOR OPENER CONTROL MODULE -J530-
10 - Distance Regulation Control Module -J428-
- Component Location and Pin Connectors: → DISTANCE REGULATION CONTROL MODULE -J428-
