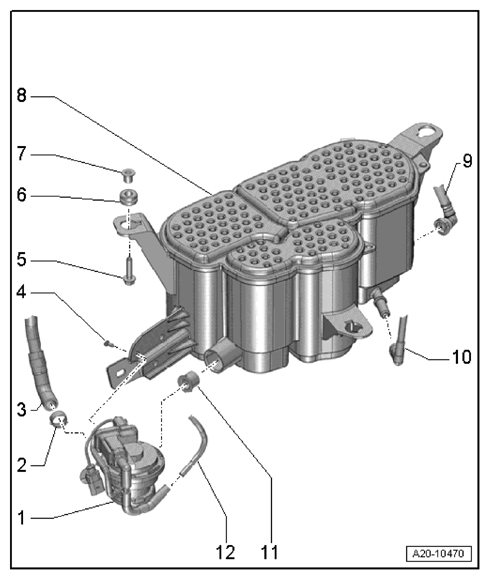

EVAP System Assembly Overview: Notes
- 1
- Leak Detection Pump (LDP) -V144- → Item 8
- Component location: Left rear on the vehicle underbody under the cover
- 1
- Fuel tank leak detection control module -J909- similar to V144 location.
- Image shows V144 component
- 8
- EVAP Canister
- Component location: Bottom of spare wheel well
- 10
- Vent Line
- To Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80-
Top → COMP. LOC. ENGINE
