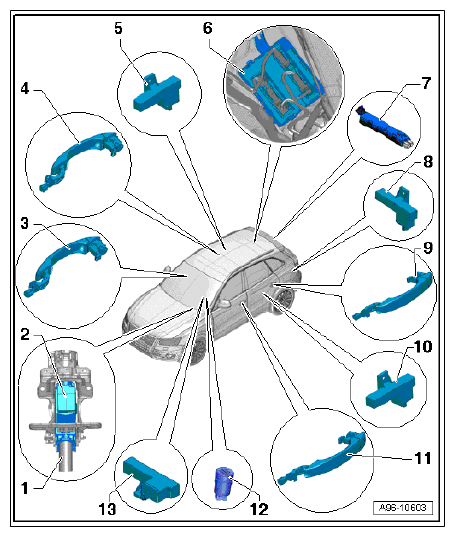

Keyless Access System Assembly Overview
- Steering Column
- Electronic Steering Column Lock Control Module -J764-
- Right Front Outside Door Handle Touch Sensor -G606-
- Located at the passenger side outside door handle
- Right Rear Outside Door Handle Touch Sensor -G418-
- Located at the right rear passenger side exterior door handle
- Right Access/Start Authorization Antenna -R201-
- Located on the right rear door
- Comfort System Central Control Module -J393-
- Located behind the right luggage compartment trim panel
- Antenna Amplifier -R24-
- With Central Locking and Anti-Theft Alarm System Antenna -R47-
- Attached to the rear lid
- Luggage Compartment Access/Start Authorization Antenna -R137-
- Located in the left luggage compartment rear lid end panel
- Left Rear Outside Door Handle Touch Sensor -G417-
- Located at the left rear passenger side exterior door handle
- Left Access/Start Authorization Antenna -R200-
- Located on the left rear door
- Left Front Outside Door Handle Touch Sensor -G605-
- Located at the driver side outside door handle
- Access/Start Authorization Button -E408-
- MMI Basic installation location: In the center console cover
- MMI Comfort installation location: In installation frame for Multimedia Control Head -E380-
- Interior Access/Start Authorization Antenna 1 -R138-
- Located beneath the front center console
