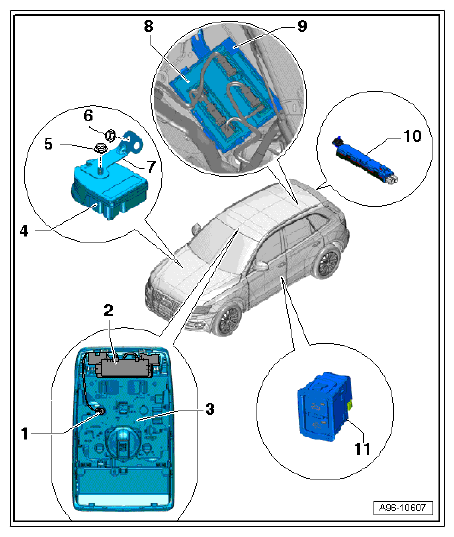

Ultrasonic Interior Monitoring Assembly Overview: Notes
Component A Is Not Shown In The Overview
- A
- Rear Window Defogger With Window Antenna -Z24-
- Located In The Rear Window
The Following Are Integrated With The Rear Window Defogger With Window Antenna -Z24-:
- Heated Rear Window -Z1-
- Rear Window Glass Breakage Sensor -G304-
- 1
- Front Interior Monitoring Individual Sensor
- Located In The Front Interior/Reading Light
- Can Only Be Replaced Together With The Anti-Theft Alarm System Sensor -G578-
- 2
- Anti-Theft Alarm System Sensor -G578-
- Located In The Front Interior/Reading Light
- 3 - Interior Lamps/Front Reading Lamps
- 4
- Alarm Horn -H12- → ALARM HORN
- Located Under The Plenum Chamber Cover
- 8 - Comfort System Central Control Module -J393-
- 9 - Control Module Bracket
- 10
- Antenna Amplifier -R24-
- With Central Locking And Anti-Theft Alarm System Antenna -R47-
- Attached To The Rear Lid
- 11 - Passenger Compartment Monitoring Switch -E183-/Alarm System -Off- Switch -E217-
