CLIMATRONIC Control Module -J255-

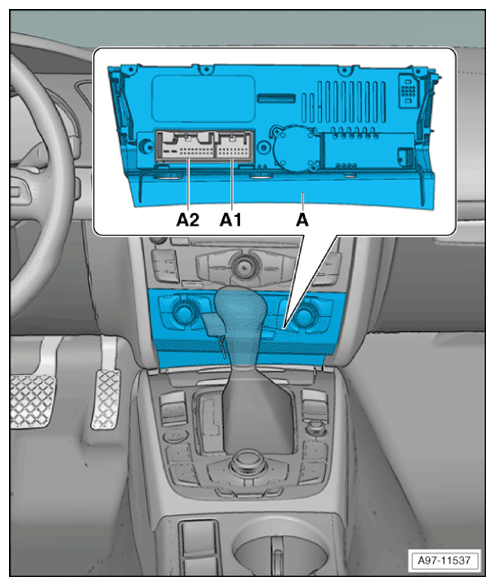

Component Location:

In Middle Part Instrument Panel.

  1. A  - Climatronic Control Module -J255-
  2. A1  - 16-Pin Connector -T16i-
  3. A2  - 20-Pin Connector -T20e-
G12766911Courtesy of AUDI OF AMERICA, LLC
