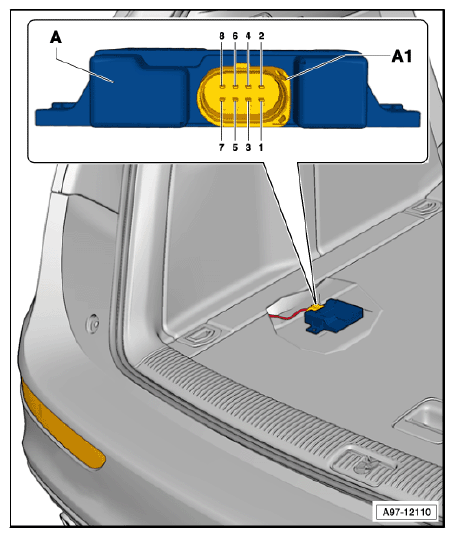

Engine Sound Generator Control Module -J943-
Component Location:
In Left Luggage Compartment
Engine Sound Generator Control Module -J943-
8-Pin Connector -T8s-
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
