Auxiliary Heater Control Module -J364-

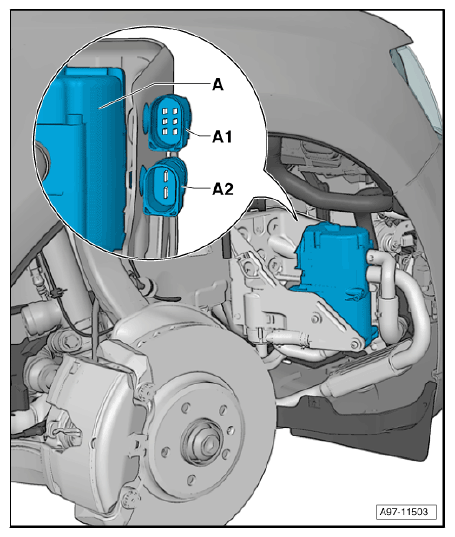

Component Location:

Behind Right Wheel Housing.

  1. A  - Auxiliary Heater Control Module -J364-
  2. A1  - 6-Pin Connector -T6a-
  3. A2  - Double Connector -T2ds-
G12779059Courtesy of AUDI OF AMERICA, LLC
