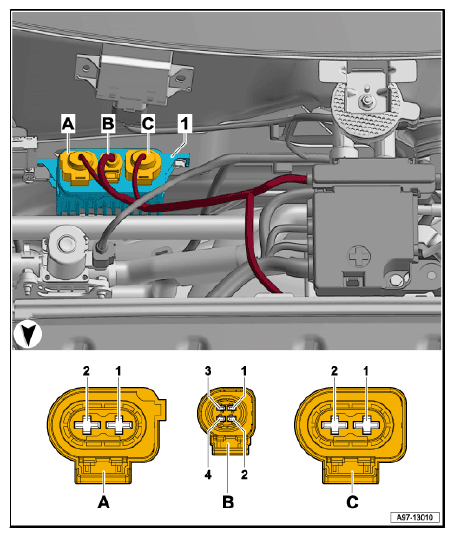

Catalytic Converter Heating Control Module 1 -J1021-
Component location
In Cowl Area
1
- Catalytic converter heating control module 1 -J1021-
A
- Double connector -T2er-
B
- 4-pin connector -T4cd-
C
- Double connector -T2es-
Courtesy of AUDI OF AMERICA, LLC
