Left High-Intensity Gas Discharge Lamp Control Module -J343-, From Model Year 2013

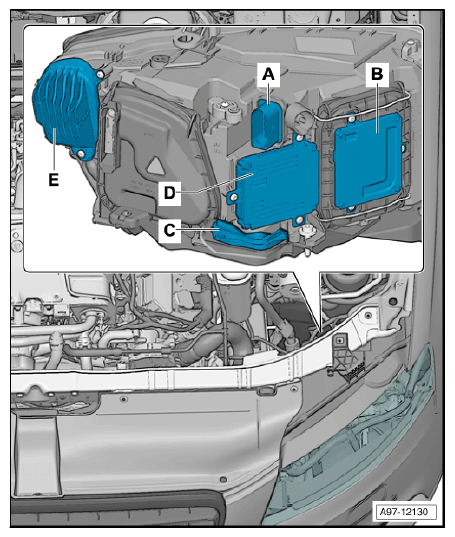

Component Location

On Left Headlamp.

  1. 14-Pin Connector -T14a-
  2. Left Daytime Running Lamp and Parking Light Control Module -J860-
  3. Left Headlamp Power Output Stage -J667-
  4. Left High-intensity Gas Discharge Lamp Control Module -J343-
  5. Left LED Parking Lamp/DRL Module -L176-
G12779057Courtesy of AUDI OF AMERICA, LLC
