Left High-Intensity Gas Discharge Lamp Control Module -J343-, Through Model Year 2012

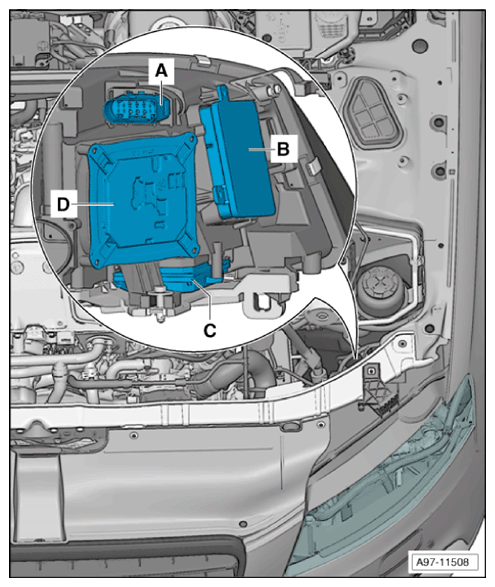

Component Location:

On Left Headlamp.

  1. 14-Pin Connector -T14a-
  2. Left High-intensity Gas Discharge Lamp Control Module -J343-
  3. Left Headlamp Power Output Stage -J667-
  4. Left LED Parking Lamp/DRL Module -L176-
G12766870Courtesy of AUDI OF AMERICA, LLC
