Right High-Intensity Gas Discharge Lamp Control Module -J344-, From Model Year 2013

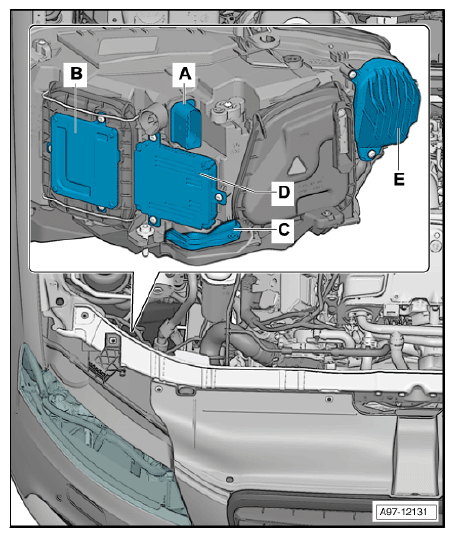

Component Location:

On Right Headlamp.

  1. 14-Pin Connector -T14b-
  2. Right Daytime Running Lamp and Parking Light Control Module -J861-
  3. Right Headlamp Power Output Stage -J668-
  4. Right High-intensity Gas Discharge Lamp Control Module -J344-
  5. Right LED Parking Lamp/DRL Module -L177-
G12779058Courtesy of AUDI OF AMERICA, LLC
