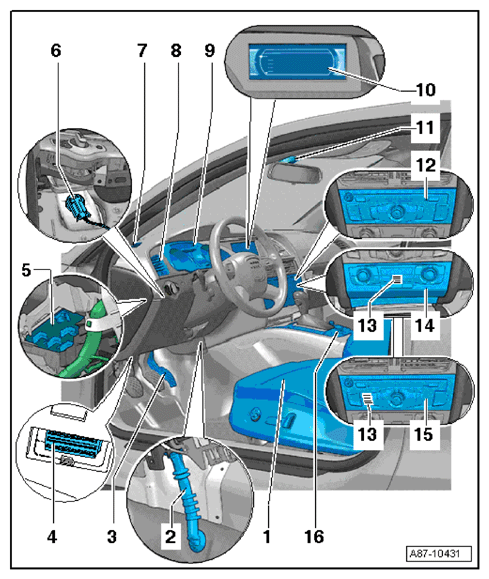

A/C System Inside Passenger Compartment: Notes

Left Side Components

1. Left seat (driver's seat) with seat heating and seat ventilation components
   • Left Front Seat Temperature Sensor-G344- with Driver Seat Side Bolster Heater -Z31- and Driver

     Seat Heating Element -Z6-

   • Left Front Heated Seat -Z45- and seat ventilation
2. Left condensation water drain (driver side)
3. Accelerator mechanism
4. Diagnostic socket
5. Vehicle Electrical System Control Module -J519-
6. Left Front Upper Body Outlet Temperature Sensor -G385-
7. Defroster vent/left side window
8. Instrument panel vent, left
9. Instrument Cluster Control Module -J285-
   • With Outside Air Temperature Display -G106- in the driver information system
10. 10  - Front Information Display Control Head -J685-
    • Multi Media Interface (MMI) display
11. 11  - Humidity Sensor -G355-
12. 12  - Radio -R-
13. 13  - Interior Temperature Sensor Fan -V42- and Instrument Panel Interior Temperature Sensor -G56-
    • The instrument panel interior temperature sensor -G56- is integrated in the Climatronic Control Module -J255-
    • Installed in the A/C control head climatronic control module -J255-
14. 14  - Climatronic Control Module -J255- - Basic A/C System
    • The instrument panel interior temperature sensor -G56- is integrated in the climatronic control module -J255-

      Courtesy of AUDI OF AMERICA, LLC

    • Interior temperature sensor fan -V42- is installed in A/C control head climatronic control module -J255-
15. 15  - Climatronic Control Module -J255- - Comfort A/C System
    • Instrument panel interior temperature sensor -G56- is integrated in A/C control head climatronic control module -J255-
    • Interior temperature sensor fan -V42- is installed in A/C control head climatronic control module -J255-
16. 16  - Multimedia Control Head -E380-
    • Depending on the vehicle equipment level, instead of a multimedia control head -E380- a radio -R- may be installed
