Passive Occupant Detection System: Notes

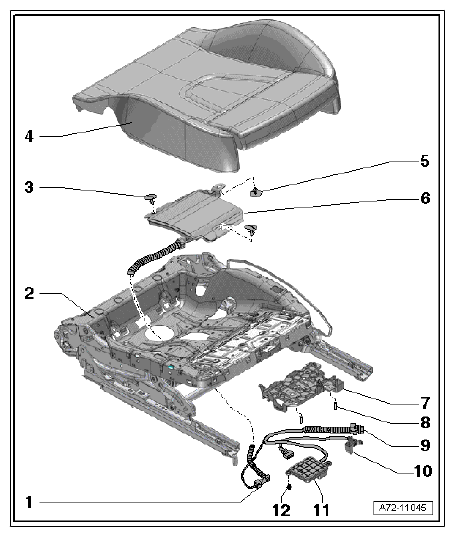

Components A Is Not Shown In The Overview.

1. A  - Front Passenger Seat Occupied Sensor -G128- → SEAT OCCUPIED SENSOR
   NOTE: The Front Passenger's Seat Occupied Sensor -G128- is only installed in front passenger's seat
2. 1  - Seat Occupied Recognition Pressure Sensor -G452-
   • Part Of The Seat Occupied Recognition Mat -6-
3. 2  - Seat Pan
4. 4  - Upholstery
   • For Seat Pan
   • Do Not Separate From The Seat Occupied Recognition Mat -6-
5. 6- Mat
   • For seat occupied recognition
   • Complementary component with the seat occupied recognition pressure sensor -G452-
   • Do not separate from the seat pan upholstery -4-
6. 7  - Mount
   • For Seat Occupied Recognition Control Module -J706-
7. 9  - Electrical Wiring Harness
   • Do not separate from the seat occupied recognition pressure sensor -G452- and seat occupied recognition control module -J706-
8. 10  - Front Passenger Seat Position Sensor -G554-
   • Component of the electrical wiring harness -9-
9. 11  - Seat Occupied Recognition Control Module -J706- → SEAT OCCUPIED RECOGNITION CONTROL MODULE
