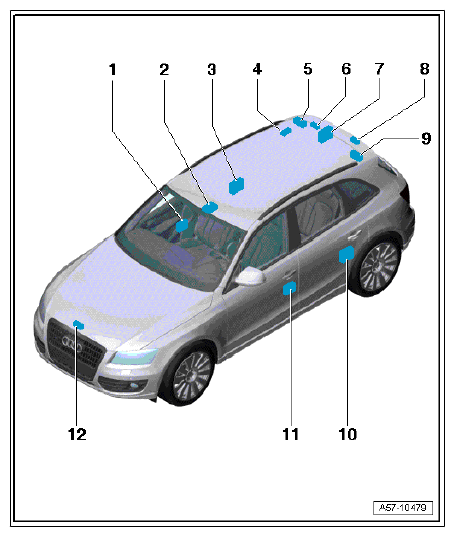

Central Locking/Anti-Theft Systems: Notes
- Front Passenger Door Control Module -J387-
- Located In The Front Passenger Door Assembly
- Anti-Theft Alarm System Sensor -G578- → ANTI-THEFT ALARM SYSTEM SENSOR
- Located In The Front Interior/Reading Light
- Right Rear Door Control Module -J389-
- Located In The Rear Right Passenger Door Assembly
- Fuel Tank Lid Unlock Motor -V155-
- Rear Lid Control Module 2 -J756- → REAR LID ASSEMBLY OVERVIEW
- Integrated With Motor (In Rear Lid Control Module 2) -V376-
- Vehicle Positioning System Interface Control Module -J843-
- Located In The Luggage Compartment Trim Panel Near The D-Pillar → VEHICLE POSITIONING SYSTEM INTERFACE CONTROL MODULE
- Comfort System Central Control Module -J393-
- Located On The Right Luggage Compartment Side Trim Panel
- Rear Lid Unlock Motor -V139-/Rear Lid Closing Assist Motor -V382-
- Integrated With Rear Lid Opening Assist Unlock Stop Switch -F332- And Rear Lid Closing Assist Lock Stop Switch -F333-
- Rear Lid Control Module -J605- → REAR LID ASSEMBLY OVERVIEW
- Integrated With Motor (In Rear Lid Control Module) -V375-
- Left Rear Door Control Module -J388-
- Located In The Rear Left Passenger Door Assembly
- Driver Door Control Module -J386-
- Located In The Front Driver Door Assembly
- Front Hood Switch -F266- → HOOD LOCK ASSEMBLY
