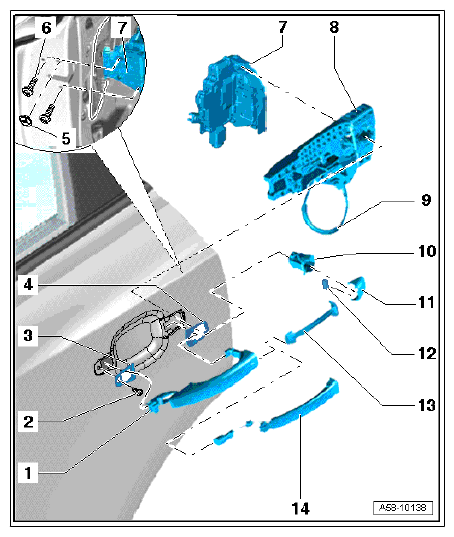

Rear Door Lock Assembly Overview: Notes

Components A - B Are Not Shown In The Overview

1. A  - Left Rear Window Regulator Motor -V26- → REAR WINDOW REGULATOR MOTOR
2. B  - Right Rear Window Regulator Motor -V27- → REAR WINDOW REGULATOR MOTOR
3. 1  - Door Handle
4. 7  - Rear Door Lock

   Depending On Equipment Level, The Following Components Are Integrated In The Rear Driver Side And Passenger Side Door Lock:

   • Left Rear Door Contact Switch -F10-
   • Left Rear Central Locking Lock Unit -F222-
   • Left Rear Central Locking System Motor -V115-
   • Left Rear Door Central Locking -SAFE- Function Actuator -F245-
   • Left Rear Central Locking (Safe) Motor -V163-
   • Left Rear Central Locking System Actuator -F132-
   • Right Rear Door Contact Switch -F11-
   • Right Rear Central Locking Lock Unit -F223-
   • Right Rear Central Locking System Motor -V97-
   • Right Rear Door Central Locking -SAFE- Function Actuator -F246-
   • Right Rear Central Locking (Safe) Motor -V164-
   • Right Rear Central Locking System Actuator -F134-

   Component Location Is Similar For The Left And Right Rear Doors

5. 14  - Left Rear Outside Door Handle Touch Sensor -G417- and Right Rear Outside Door Handle Touch Sensor -G418-

Courtesy of AUDI OF AMERICA, LLC
