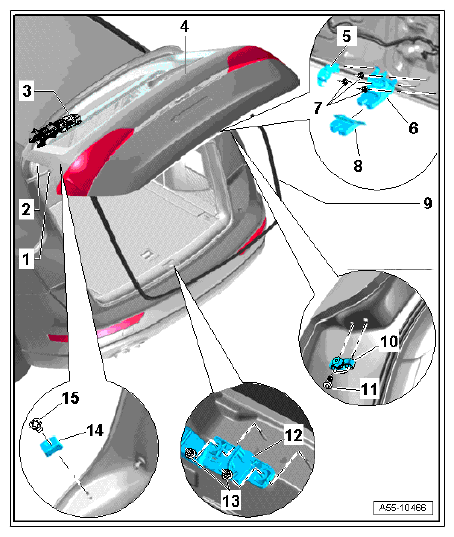

Rear Lid Assembly Overview
- 1 - Gas-Filled Strut
- 2 - Lid Hinge
- 3
- Rear Lid Control Module -J605- LH side
- Integrated with Motor (in rear lid control module) -V375- LH side
- Rear Lid Control Module 2 -J756- RH side (not shown)
- Integrated with Motor (in rear lid control module 2) -V376- RH side (not shown)
- 4 - Rear Lid
- 6
- Rear Lid Lock
The Following Are Integrated In The Rear Lid Central Locking Unit:
- Trunk Lid Alarm Switch -F123-
- Rear Lid Central Locking System Motor -V53-
- 12
- Rear Lid Closed Sensors
- Rear Lid Closed Sensor 1 -G525-
- Rear Lid Closed Sensor 2 -G526-
- Located under trim
