Airbag Control Module -J234-

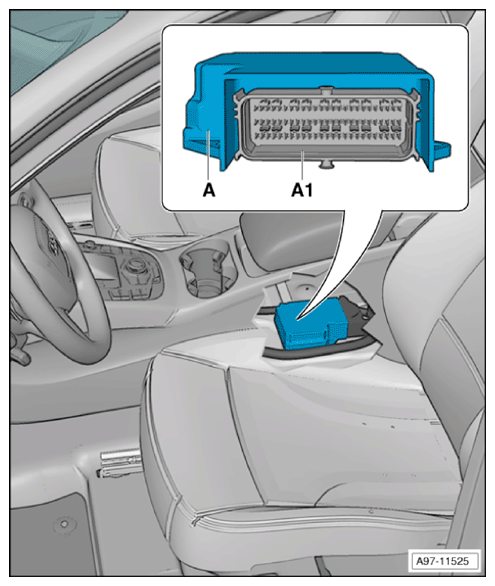

Component Location:

Below Center Console.

  1. A  - Airbag Control Module -J234-
  2. A1  - 100-Pin Connector -T100-
G12766912Courtesy of AUDI OF AMERICA, LLC
