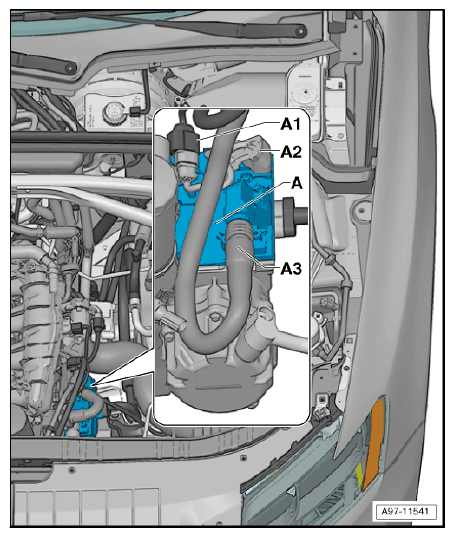

Electrical A/C Compressor -V470- With A/C Compressor Control Module -J842-

Component Location:

On Left Engine Block

1. A  - Electrical A/C Compressor -V470- with A/C Compressor Control Module -J842-
2. A1  - 8-Pin Connector -T8ay-
3. A2  - Connector A/C Compressor Control Module -J842-
4. A3  - 4-Pin Connector -T4bk-

Courtesy of AUDI OF AMERICA, LLC
