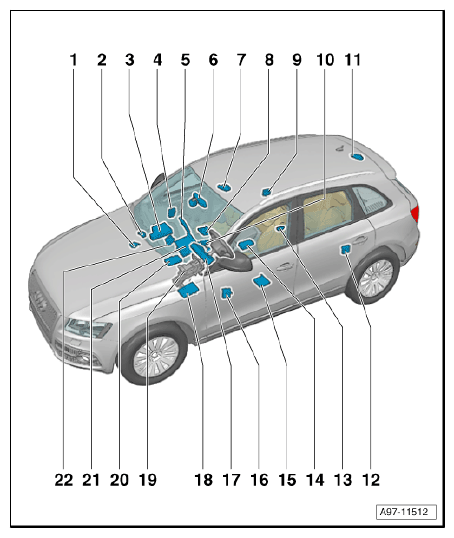

Overview Of Control Modules In Interior Of Vehicle
- 1
- Headlamp Range Control Module -J431-
- Component Location and Pin Connectors: → HEADLAMP RANGE CONTROL MODULE -J431-/HEADLAMP RANGE/CORNERING LAMP CONTROL MODULE -J745-
- 1
- Headlamp Range/Cornering Lamp Control Module -J745-
- Component Location and Pin Connectors: → HEADLAMP RANGE CONTROL MODULE -J431-/HEADLAMP RANGE/CORNERING LAMP CONTROL MODULE -J745-
- 2
- Fresh Air Blower Control Module -J126-
- Component Location and Pin Connector: → FRESH AIR BLOWER CONTROL MODULE -J126-
- 3
- CD Changer -R41-/DVD Changer -R161-
- Models With MMI
- Component Location and Pin Connectors: → CD CHANGER -R41-/DVD CHANGER -R161-
- Models Without MMI → Item 21
- 4
- Front Passenger's Door Control Module -J387-
- Component Location and connectors for models with left-hand drive: → FRONT PASSENGER'S DOOR CONTROL MODULE -J387-
- 5
- Front Information Display Control Head -J685-
- Component Location and Pin Connectors: → FRONT INFORMATION DISPLAY CONTROL HEAD -J685-
- 6
- Automatic Day/Night Interior Mirror -Y7- with rain/light recognition sensor -G397-
- Component Location: → AUTOMATIC DAY/NIGHT INTERIOR MIRROR -Y7- WITH RAIN/LIGHT RECOGNITION SENSOR -G397-
- 7
- Power Sunroof Control Module -J245- with Sunroof Motor -V1-
- Component Location and Pin Connector: → POWER SUNROOF CONTROL MODULE -J245- WITH SUNROOF MOTOR -V1-
- 8
- Passenger Memory Seat Control Module -J521-
- Component Location: Below front passenger's seat
- 8
- Telephone Transceiver -R36-
- Component Location and Pin Connectors: → TELEPHONE TRANSCEIVER -R36-
- 9
- Right Rear Door Control Module -J389-
- Component Location and Pin Connectors: → RIGHT REAR DOOR CONTROL MODULE -J389-
- 10
- Multimedia Control Head -E380-
- Component Location and Pin Connector: → MULTIMEDIA CONTROL HEAD -E380-
- 11
- Roof Blind Control Module -J394- with Sunroof Blind Motor -V260-
Component Location: In rear roof area
- 12
- Left Rear Door Control Module -J388-
- Component Location and Pin Connectors: → LEFT REAR DOOR CONTROL MODULE -J388-
- 13
- Fuel Pump (FP) Control Module -J538-
Component Location: Below rear seat
- 14
- Airbag Control Module -J234-
- Component Location and Pin Connector: → AIRBAG CONTROL MODULE -J234-
- 15
- Memory Seat/Steering Column Adjustment Control Module -J136-
- Component Location: Below driver's seat
- 15
- Active Steering Control Module -J792-
- Component Location and Connectors → ACTIVE STEERING CONTROL MODULE -J792-
- 16
- Driver's Door Control Module -J386-
- Component Location and connectors for models with left-hand drive: → DRIVER'S DOOR CONTROL MODULE -J386-
- 17
- Instrument Cluster Control Module -J285-
- Component Location and Pin Connector: → INSTRUMENT CLUSTER CONTROL MODULE -J285-
- 18
- 16-Pin Connector -T16-, Data Link Connector
- Component Location: → 16-PIN CONNECTOR -T16-, DATA LINK CONNECTOR
- 18
- Vehicle Electrical System Control Module -J519-
- Component Location and connectors for models with left-hand drive: → VEHICLE ELECTRICAL SYSTEM CONTROL MODULE -J519-
- 19
- Steering Column Electronic Systems Control Module -J527-
- Component Location: On steering column
- 19
- Electronic Steering Column Lock Control Module -J764-
- Component Location: On steering column
- 19
- Multi-function Steering Wheel Control Module -J453-
- Component Location: On steering column
- 20
- Climatronic Control Module -J255-
- Component Location and Pin Connectors: → CLIMATRONIC CONTROL MODULE -J255-
- 21
- Control Module for Information Electronics 1 -J794-
- Models With MMI
- Component Location and Pin Connectors: → CONTROL MODULE FOR INFORMATION ELECTRONICS 1 -J794-
- 21
- Radio -R- (with integrated CD Changer -R41-/DVD Changer -R161-)
- Models Without MMI
- Component Location and Pin Connectors: → RADIO -R- (WITH INTEGRATED CD CHANGER -R41-/DVD CHANGER -R161-)
- Models With MMI → Item 3
- 22
- Data Bus On Board Diagnostic Interface -J533-
- Component Location and Pin Connectors: → DATA BUS ON BOARD DIAGNOSTIC INTERFACE -J533-
