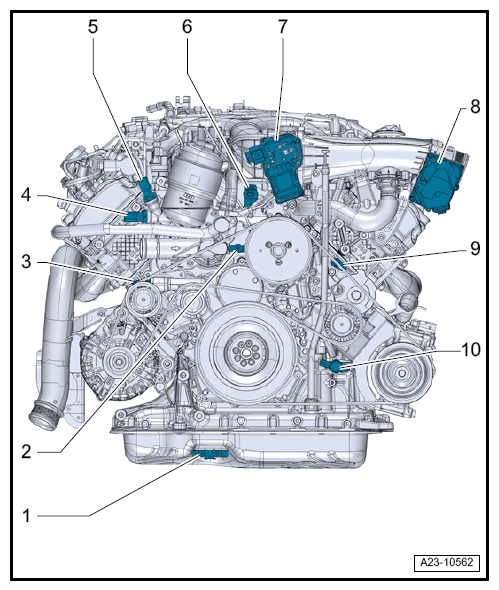

3.0L TDI CPNB Front View: Notes

  1. Oil level thermal sensor -G266-
  2. Map controlled engine cooling thermostat -F265- → EGR TEMPERATURE SENSOR -G98-/MAP CONTROLLED ENGINE COOLING THERMOSTAT -F265-/EGR MOTOR -V338-
  3. Oil temperature sensor 2 -G664- → ENGINE TEMPERATURE CONTROL SENSOR -G694-
  4. Oil pressure switch -F22-
  5. Reduced oil pressure switch -F378-
  6. EGR cooler switch-over valve -N345-
  7. Intake flap motor -V157-
  8. Throttle valve control module -J338-
  9. Engine temperature control sensor -G694- → ENGINE TEMPERATURE CONTROL SENSOR -G694-
  10. Oil pressure regulation valve -N428- → NOX SENSOR CONTROL MODULE 2 -J881-/NOX SENSOR 2 -G687-
G12768387Courtesy of AUDI OF AMERICA, LLC
